FUJI DIE
Fuji Die Peeling Die K Type
Manufacturer: Fuji Die Co., Ltd.
Model: K Type

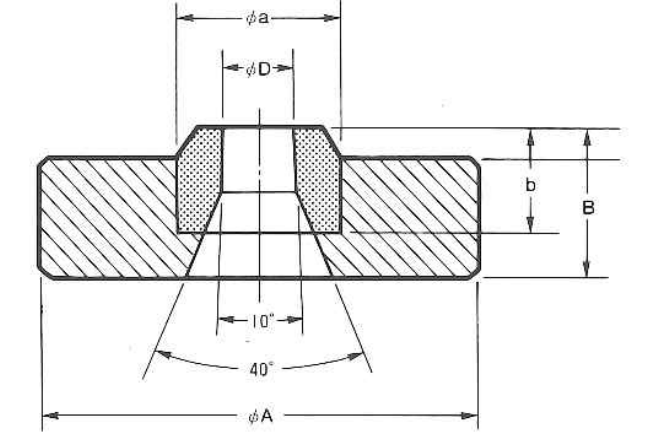

Specifications and Dimensions
| Model No. | D | a | b | A | B |
|---|---|---|---|---|---|
| K 15 | Up to 5 | 15 | 9 | 42 | 17 |
| K 20 | 5 – 8 | 20 | 12 | 55 | 20 |
| K 25 | 8 – 11 | 25 | 12 | 60 | 20 |
| K 30 | 11 – 14 | 30 | 15 | 70 | 24 |
| K 35 | 14 – 17 | 35 | 15 | 85 | 24 |
| K 40 | 17 – 20 | 40 | 15 | 100 | 26 |
| K 50 | 20 – 28 | 50 | 17 | 100 | 28 |
| K 60 | 28 – 36 | 60 | 17 | 125 | 30 |
| K 70 | 36 – 44 | 70 | 20 | 125 | 30 |
| K 80 | 44 – 52 | 80 | 22 | 145 | 35 |
| K 90 | 52 – 60 | 90 | 25 | 145 | 35 |
| K 100 | 60 – 70 | 100 | 30 | 175 | 40 |
