FUJI DIE

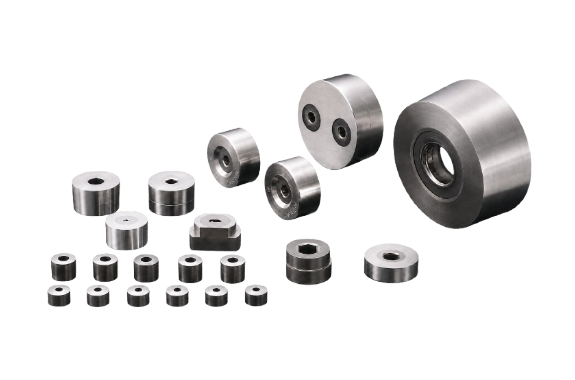

Fuji Die Square Die SQA/SQ Type
Manufacturer: Fuji Die Co., Ltd.
Model: SQA/SQ Type

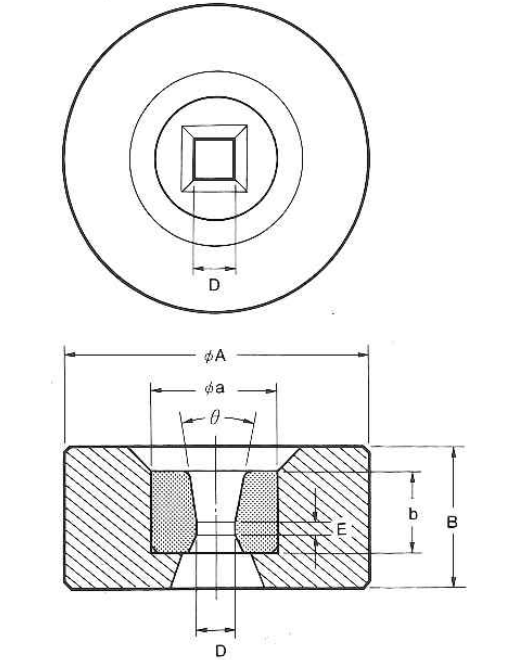

Specifications and Dimensions
| Square Dies (First Draw) | D (Small Diameter Range) | Square Dies (Second Draw) | D (Small Diameter Range) | Pitch Diameter of Chip | Case Dimensions | ||
|---|---|---|---|---|---|---|---|
| a | b | A | B | ||||
| SQA 20 | 1 – 3 | SQ 12 | 1 – 3 | 12 | 8 | 30 | 15 |
| SQA 25 | 2 – 4 | SQ 15 | 2 – 4 | 15 | 10 | 42 | 20 |
| SQA 30 | 3 – 7 | SQ 20 | 3 – 7 | 20 | 13 | 55 | 24 |
| SQA 35 | 5 – 9 | SQ 25 | 5 – 9 | 25 | 16 | 60 | 28 |
| SQA 40 | 7 – 12 | SQ 30 | 7 – 12 | 30 | 20 | 70 | 35 |
| SQA 45 | 9 – 13 | SQ 35 | 9 – 13 | 35 | 22 | 85 | 40 |
| SQA 50 | 11 – 16 | SQ 40 | 11 – 16 | 40 | 24 | 100 | 40 |
| SQA 55 | 13 – 19 | SQ 45 | 13 – 19 | 45 | 27 | 115 | 45 |
| SQA 60 | 15 – 21 | SQ 50 | 15 – 21 | 50 | 27 | 125 | 48 |
| SQA 70 | 17 – 22 | SQ 55 | 17 – 22 | 55 | 30 | 135 | 55 |
| SQA 80 | 19 – 26 | SQ 60 | 19 – 26 | 60 | 30 | 165 | 55 |
| SQA 90 | 25 – 31 | SQ 70 | 25 – 31 | 70 | 33 | 175 | 60 |
| SQA 100 | SQ 80 | 30 – 36 | 80 | 35 | 195 | 65 | |
| SQA 110 | SQ 90 | 36 – 41 | 90 | 38 | 215 | 70 | |
| SQA 120 | SQ 100 | 100 | 40 | 230 | 70 | ||
