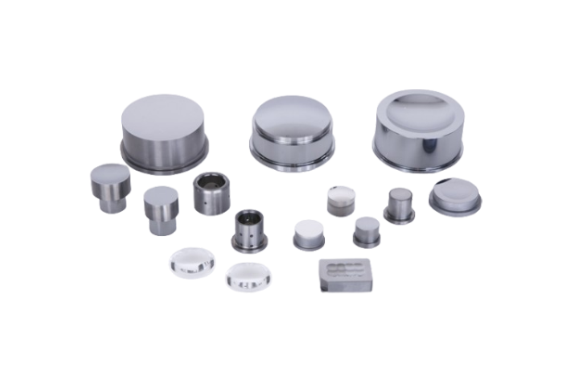

Fuji Die Fujiloy TR05/TR30 High Thermal Expansion Low Specific Gravity Hard Alloy
Manufacturer: Fuji Die Co., Ltd.
Model: TR05/TR30
Feature
- An innovative cermet alloy that combines a high coefficient of thermal expansion with excellent mirror-like finish.
- By bringing the coefficient of thermal expansion closer to that of glass, the jamming of glass material during mold release is suppressed.
- Mirror-like finish equivalent to binderless cemented carbide.
- Lightweight
- Corrosion-resistant
- Tungsten and cobalt free
Possible usage examples
- Mold for lens array
- Microfluidic molding die
- Infrared lens molding die
- Molds for special optical elements
- Mold for heat-resistant resin lenses
Specifications
| Material | Focus | Specific Gravity | Hardness (HRA) | Bending Strength (MPa) | Fracture Toughness KIC (MPa·m1/2) | Thermal Conductivity [W/(m·K)] | Thermal Expansion Coefficient ×10-6/°C (RT–400°C) | Thermal Expansion Coefficient ×10-6/°C (RT–600°C) | Thermal Expansion Coefficient ×10-6/°C (RT–800°C) | Thermal Shock Temperature ΔT (°C) | Oxidation Increase (g/m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TR05 | Mirror Finish | 7.00 | 93.0 | 1000 | 4.3 | 13 | 8.5 | 9.1 | 9.6 | 200 | 20 |
| TR30 | Scratch Resistance | 7.15 | 90.5 | 1300 | 8.2 | 13 | 9.1 | 9.6 | 10.1 | 350 | 10 |
