Fuji Tool, Gauges, Hand Tools, Japan, TOOLS & EQUIPMENT
Fuji Tool Chamfer Measuring Gauges
Product Made in Japan
Manufacturer: Fuji Tool
Features
Measure the size of a chamfer on a workpiece.
It has a compact design to be easily portable for on-site jobs.
Specifications
| Material | Stainless Steel |
| Accuracy | ± 0.03mm |
| Code No. | Model No. | Leaves | Size Composition / Contents | Unit |
|---|---|---|---|---|
| 03-013 | C-5 | 10 | 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 | mm |
| 03-014 | C-10 | 10 | 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0 | mm |
| 03-015 | C-215 | 14 | 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 | mm |
| 03-016 | C-163 | 15 | 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 | mm |

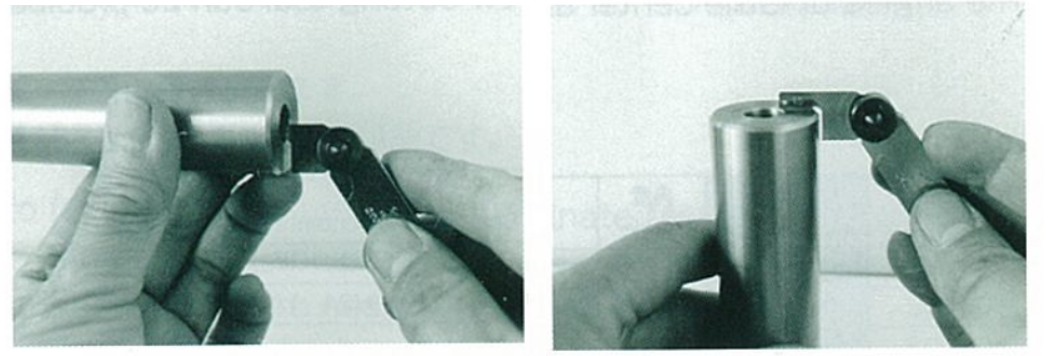

Example of use
