H.H.H, Japan

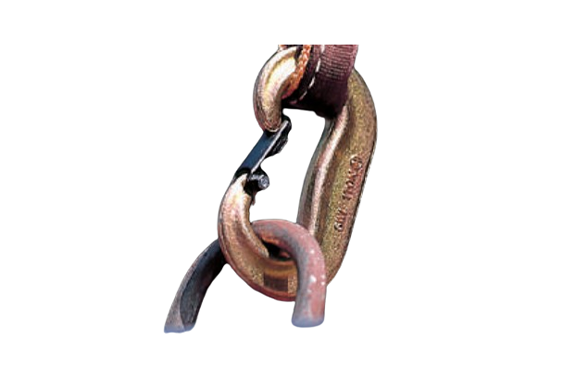

H.H.H C Ring CL
Made in: Japan
Manufacturer: H.H.H
Featured
Please use it as a universal hook for connecting and attaching wires, belt slings, etc., squeezing, securing roots for trucks, etc., and for slings.
Specifications
| Model | Working Load (ton) | Weight (g) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Quantity per Box |
| CL0.5 | 0.5 | 150 | 100 | 50 | 10 | 5 | 70 | 16 | 10 | 20 | 25 |
| CL1 | 1 | 260 | 115 | 63 | 14 | 6 | 75 | 20 | 16 | 25 | 20 |
| CL2 | 2 | 500 | 135 | 74 | 16 | 8 | 88 | 24 | 18 | 28 | 10 |
Appearance Drawing
