Hakaru FDW-101 3-Color Bar Graph Meter (With Digital Indicator)

Manufacturer: HAKARU PLUS CORPORATION
Model: FDW-101

Scale Length 100mm, 3-Color Display, 1-Point Indicator

Model

FDW-101-(1)-(2)

(1) Power Supply

Code	Description
B	DC24V ±15%
C	DC5V ±5%, non-isolated
Z	AC85 to 264V

(2) Input

Code	Input Range
1	0 to 1mA
2	4 to 20mA
3	0 to 1V
4	1 to 5V
5	0 to 5V
0	Other

How to Order Example

Model: FDW-101-Z-4
Bar graph color: Red
Scale: 0 to 500°C
Digital value: 0 to 500.0
Special specification:

Device Specifications

Housing: ABS resin case, Munsell N1.5
Front window: Acrylic resin, transparent
Nameplate: Munsell N1.5

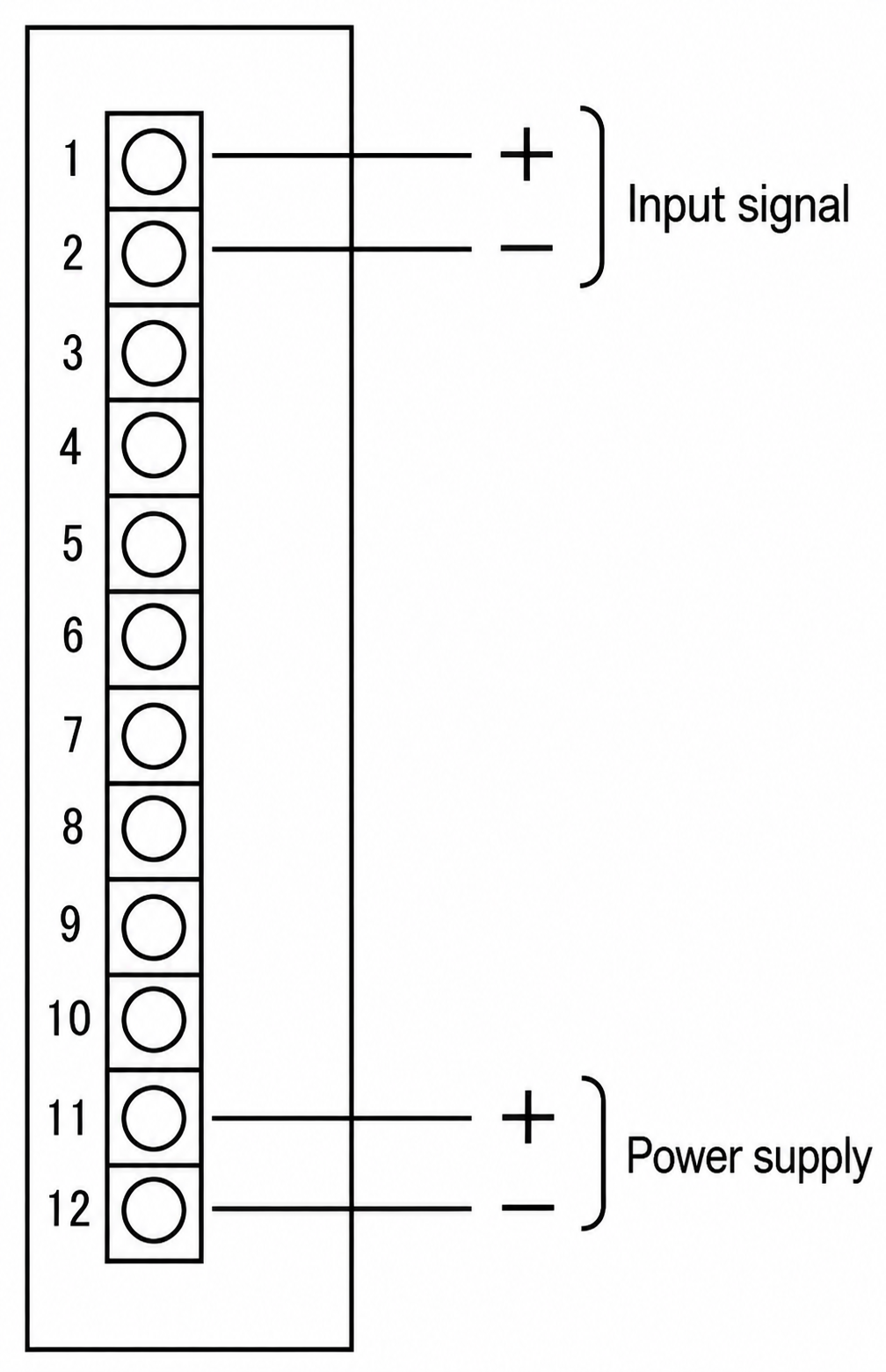

Connection: M3 screw terminal
Scale plate: Black colored aluminum, white characters, white scale lines
Scale length: 100mm
Display color: Red, yellow, or orange LED. Please specify.
Number of bar dots: 101
Input overrange: Hi display blinks at 100% or more, and Lo display blinks at 0% or less.
Isolation: Input and power supply are isolated. C type is non-isolated.
Zero / span adjustment: Approx. ±10%
Alarm hysteresis: 1%
Power failure compensation: Zero / span adjustment values and alarm setting values are stored in nonvolatile memory.

Input Specifications

Input Range	Input Resistance
0 to 1mA	200Ω
4 to 20mA	10Ω
0 to 1V	100kΩ or more
1 to 5V	250kΩ or more
0 to 5V	250kΩ or more

Installation Specifications

Power supply: AC85 to 264V 7VA
DC24V ±15% 6W, DC5V ±5% 3W
Operating temperature range: 0 to 45°C
Operating humidity range: 40 to 85%RH, no condensation

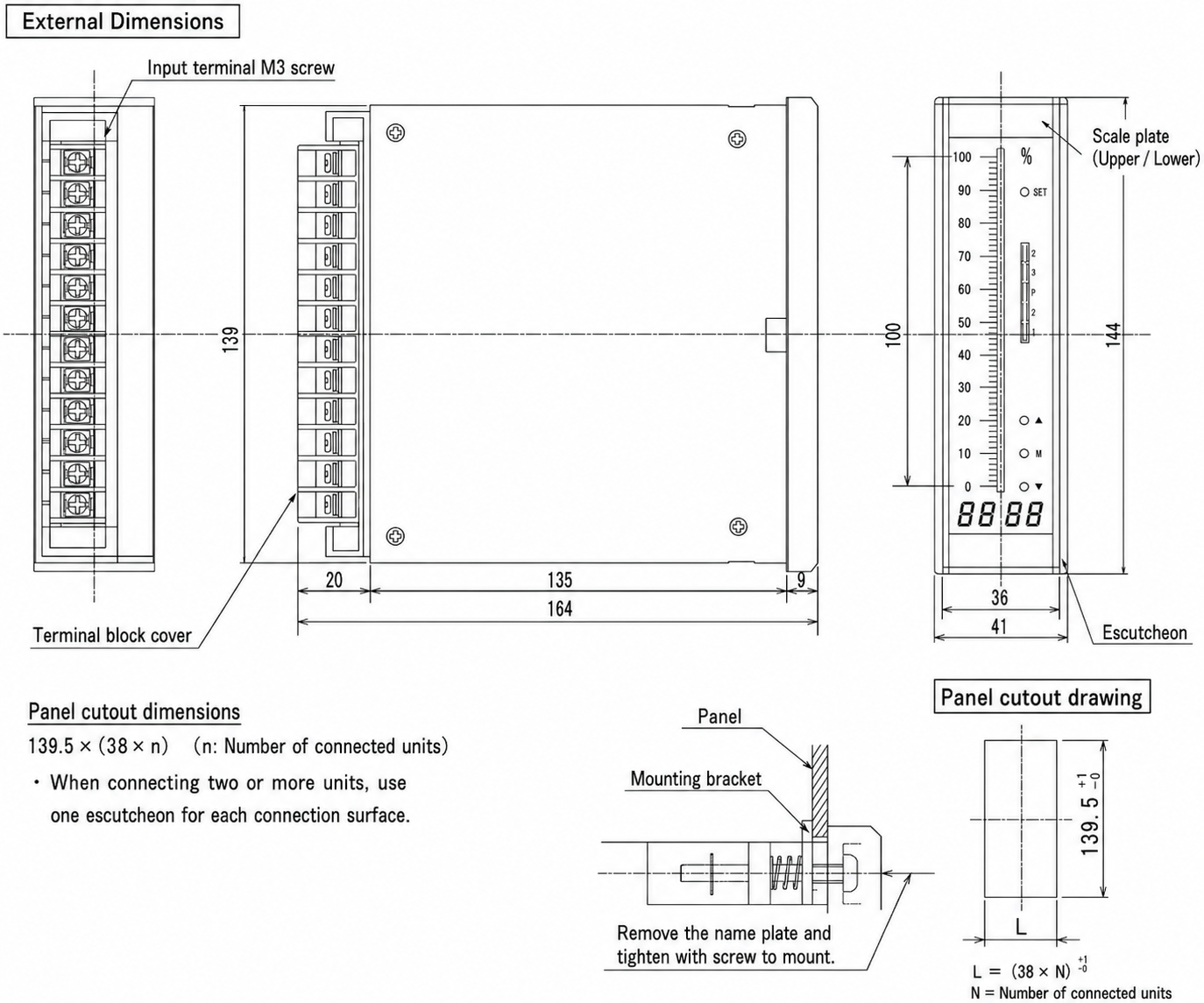

Dimensions: W36 × H144 × D160
Mounting direction: Vertical
Mass: Approx. 420g

Performance

Reference accuracy:
Bar graph display: ±(1% + 1digit)
Digital display: ±0.5%
Response time: 0.5 seconds
Insulation resistance: Electrical circuits collectively to external case, 50MΩ or more / DC500V
Dielectric strength: Electrical circuits collectively to external case, AC1500V for 1 minute
Between input and power supply: AC1000V for 1 minute
