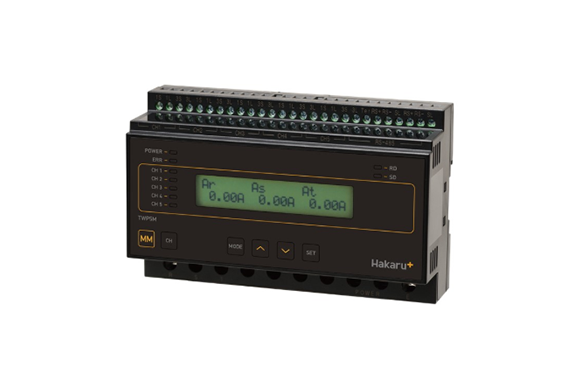

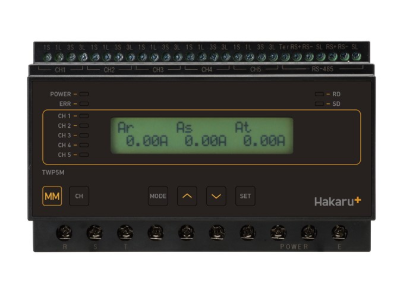

Hakaru TWP5M Power Converter 5-Circuit Power Multi-Measurement Type

Manufacturer: HAKARU PLUS CORPORATION
Model: TWP5M

Product Description
It measures various data on the electrical circuit, such as voltage, current, and power consumption, for five feeders in the same system, and sends the data to a host computer via either RS-485 or Modbus communication.The display employs a character LCD display with 20 characters x 2 columns.Measurement values for up to three elements can be displayed simultaneously on one screen.
Features
Measures A, V, W, Wh, Var, Varh PF, Hz, DA (MDA), and DW (MDW).
By using a clamp CT, installation can be performed without interrupting the power supply.
Using computer software, you can easily visualize your electricity consumption.
