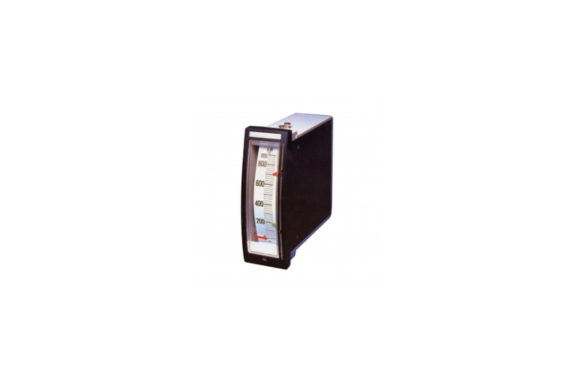

Manufacturer: HAKARU PLUS CORPORATION
Model: FH-45A

Model / Specifications

Scale length: 34mm
Class: 2.5 class
Pointer shape: Bar type, red
Escutcheon frame: None

DC Ammeter

Model: FHC-45A, moving-coil type

Note: When exceeding 10mA, use an external shunt with a 60mV meter.

DC Voltmeter

Model: FHC-45A, moving-coil type

Note: When exceeding 100V, use an external multiplier with a 1mA meter.

Receiver Indicator

Model: FHC-45A, moving-coil type

AC Ammeter

Model: FHK-45A, RMS response type

Note: When exceeding 30A, use an external CT with a 5A meter.

AC Voltmeter

Model: FHK-45A, rectifier type

External dimensions: 44.5 × 13mm

How to Order Example

Product name: Receiver indicator
Model: FHC-45A
Scale: 0 to 100kW
Input range: 4 to 20mA
Special specification:

Connection Diagram

Refer to Series Specifications.

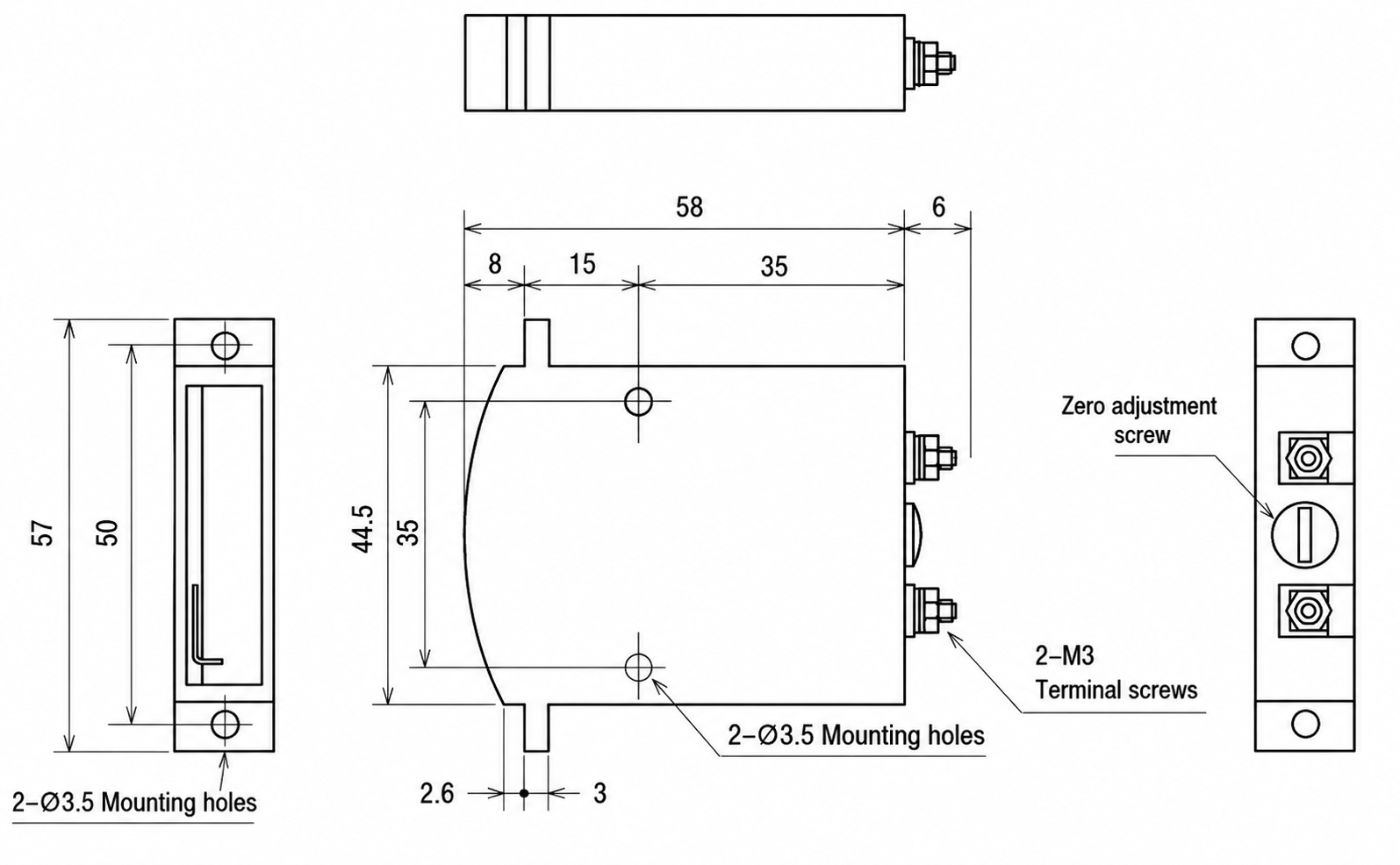

Outline Drawing (Unit: mm)

FH□-45A
Mass: 40 g (for DC 1 mA meter)

Accessory Outline Drawing
Refer to the Series Specifications

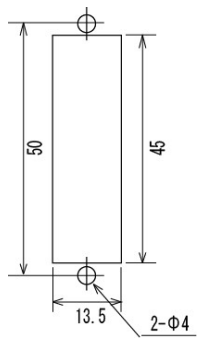

Panel Cutout Dimensions
