Product Description

This contactless detection meter relay combines an electrical measuring instrument and semiconductor technology in one relay unit. It lets users read current and voltage values clearly. Also, it supports alarm output and automatic control through its contact output.

Features

• The relay uses a continuous-output pointer-pass system. Therefore, the output covers the full scale range.
• It includes an LED indicator light, so users can check the operating status from a distance.
• The lineup includes DC ammeters and DC voltmeters. The DC ammeter supports direct type and external shunt type. Meanwhile, the DC voltmeter supports direct type and external multiplier type.
• In addition, users can choose between upper-limit alarm and upper/lower-limit alarm types.
• Finally, the available sizes are 100 × 120 mm, 83 × 100 mm, and 83 × 83 mm.

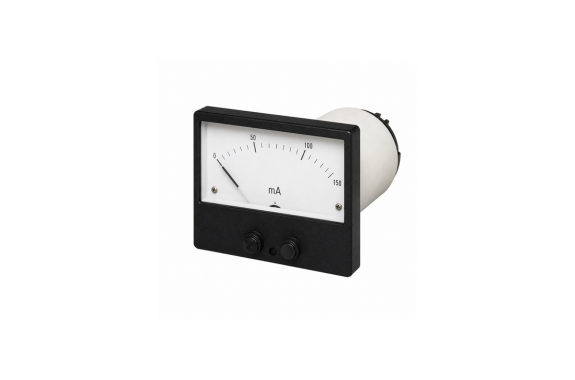

*The image is for reference only.
