Hakaru

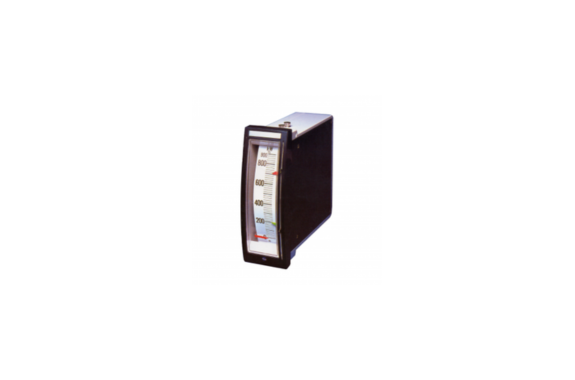

Hakaru FH-80 Scale Length 64mm Type
Manufacturer: HAKARU PLUS CORPORATION
Model: FH-80
Model / Specifications
Scale length: 64mm
Class: 2.5 class
Pointer shape: Bar type, red
Escutcheon frame: Included, black or silver finish
Base material: Phenolic resin
DC Ammeter
Model: FHC-80, moving-coil type
| Rating | Remarks |
|---|---|
| 50µA | |
| 100µA | |
| 1mA | |
| 10mA to 1A | |
| 10, 20A | With shunt |
| 60mV |
When exceeding 1A, use an external shunt with a 60mV meter.
DC Voltmeter
Model: FHC-80, moving-coil type
| Rating | Remarks |
|---|---|
| 1 to 150V | 6,000 |
| 300V | With multiplier TRZ-DV |
When exceeding 150V, use an external multiplier with a 1mA meter.
Receiver Indicator
Model: FHC-80, moving-coil type
| Rating | Remarks |
|---|---|
| 4 to 20mA | |
| 1 to 5V | 4kΩ |
AC Ammeter
Model: FHK-80, RMS response type
| Rating | Remarks |
|---|---|
| 1, 3, 5, 10, 20 | With converter TRZ-A |
| 30A |
When exceeding 30A, use an external CT with a 5A meter.
AC Voltmeter
Model: FHK-80, rectifier type
| Rating | Remarks |
|---|---|
| 10 to 150V | |
| 300V | With converter TRZ-AV |
How to Order Example
Product name: Receiver indicator
Model: FHC-80
Scale: 0 to 100kW
Input range: 4 to 20mA
Escutcheon frame: Black
Special specification:
Connection Diagram
Refer to Series Specifications.

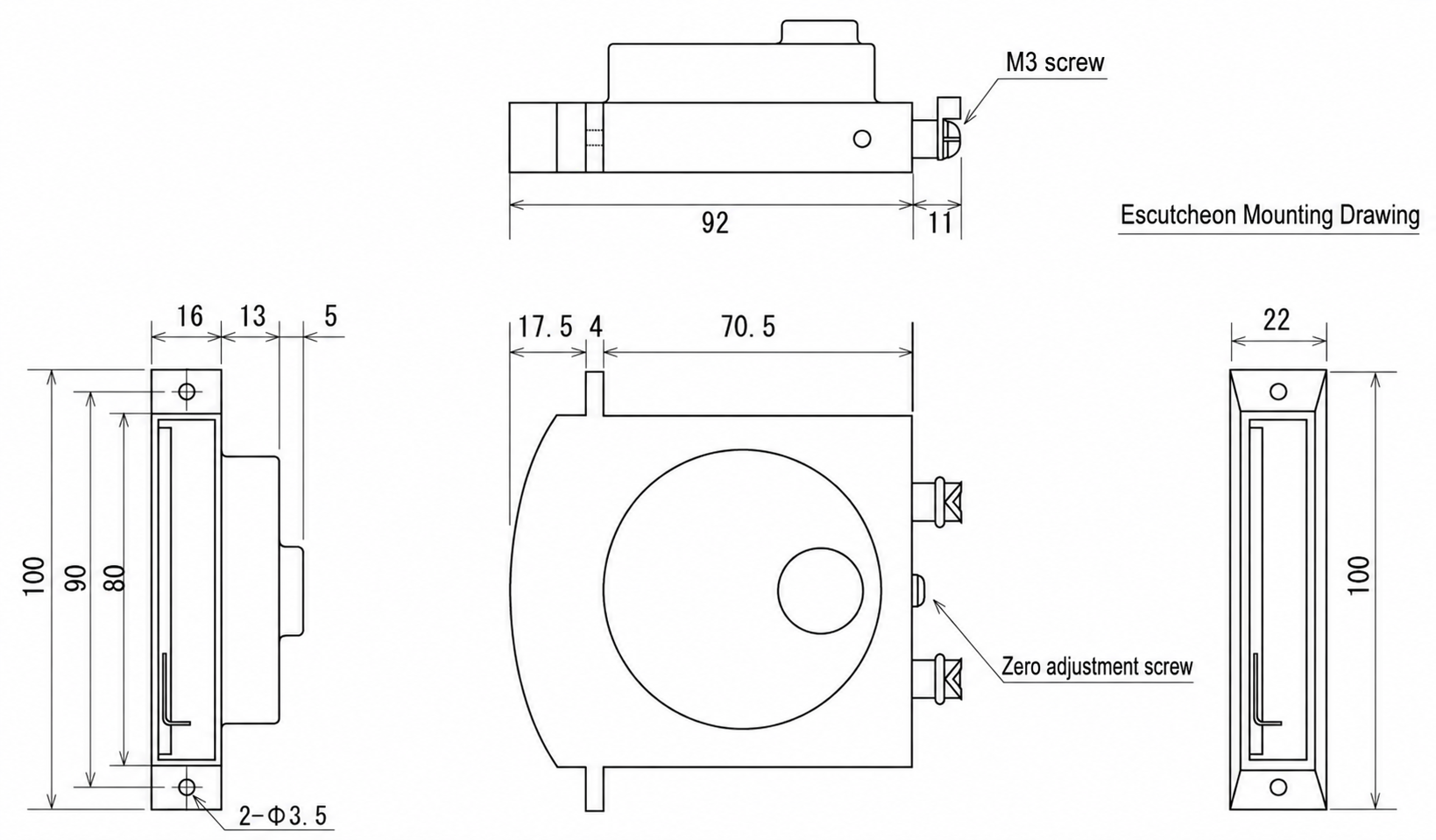

Outline Drawing (Unit: mm)
FH□-80
Mass: 175 g (for DC 1 mA meter)
Accessory Outline Drawing
Refer to the Series Specifications
Panel Cutout Dimensions
