Hakaru

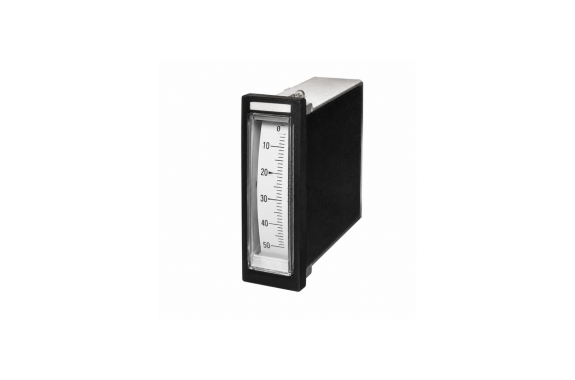

Hakaru FHRK-152 Rim Type (152×50) AC Voltmeter (Rectifier Type)
Manufacturer: HAKARU PLUS CORPORATION
Model: FHRK-152
Product Description
This is a contactless detection pass-through meter relay that integrates an electrical measuring instrument and semiconductor technology into a single relay unit. It can simultaneously read voltage, current, and other parameters, and its contact output can trigger alarms or automatic control functions.
Features
- It employs a continuous-output, pointer-passing relay, and the output covers the entire scale range.
- Equipped with an LED indicator light, the relay’s operating status can be determined even from a distance.
- There are two types: AC ammeters and AC voltmeters.
- There are two types of alarms: upper limit alarms and upper and lower limit alarms.
- The available sizes are 152 mm x 50 mm and 100 mm x 30 mm.
