Hakaru

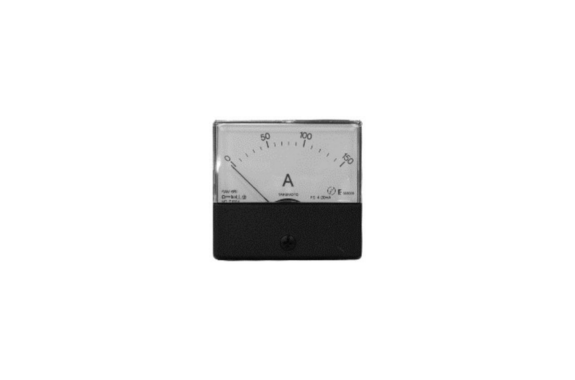

Hakaru RAS-102A Rectangular (102 x 102)
Manufacturer: HAKARU PLUS CORPORATION
Model: RAS-102A
Product Description
This is a rectangular, direct-acting indicating electrical meter that receives an electrical signal and indicates the amount of alternating current it measures. It conforms to the Japanese Industrial Standard JIS C-1102 for direct-acting indicating electrical meters.
Features
- There are two types: direct measurement and CT combined measurement.
- This is an uneven scale type.
- The depth is 100mm or less. This allows for smaller (thinner) panels and more efficient use of the space inside the panel.
- With an insulating barrier and terminal cover, it enhances safety and prevents accidents by strengthening insulation between terminals and protecting live parts.
- The bright, easy-to-read scale is designed to fulfill the fundamental function of an indicating instrument.
- We use a strong, flame-retardant molded case material.
- A wide variety of instrument sizes are available. (64×60, 85×75, 100×85, 82×82, 102×102)
