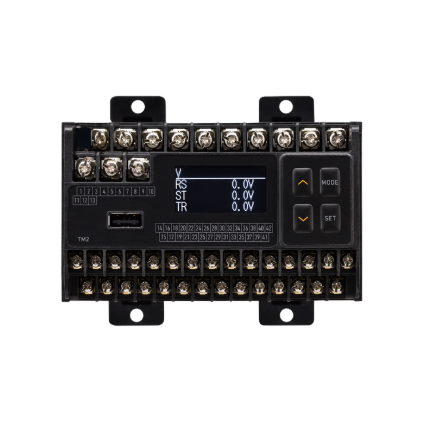

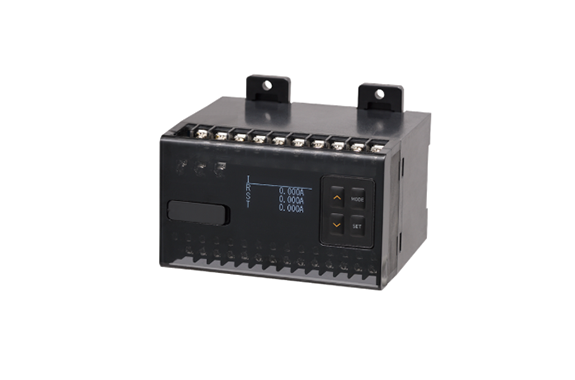

Product Description

This converter measures various electrical quantities on single-phase and three-phase power lines with just one unit. It has:

• 10 analog outputs (non-insulated)
• 2 digital outputs
• 1 communication output
• 1 contact status input
  You can select the output items as needed.

Features

It can measure current, voltage, power, reactive power, power factor, frequency, demand current, demand power, harmonics, and electric energy and reactive energy.
There are 10 analog outputs (non-insulated), and the items can be set freely.
Digital outputs include two pulse outputs and one RS-485 communication output.
One contact state input is possible.
The phase wiring system, rated voltage, and rated current can be switched by settings. It now supports 440V direct connection.
Analog and RS-485 test outputs allow you to check operation without measuring inputs.
The phase detection function helps detect positive and negative phases in connections.
By connecting a USB memory stick to the USB terminal on the front panel, you can read and write settings.
