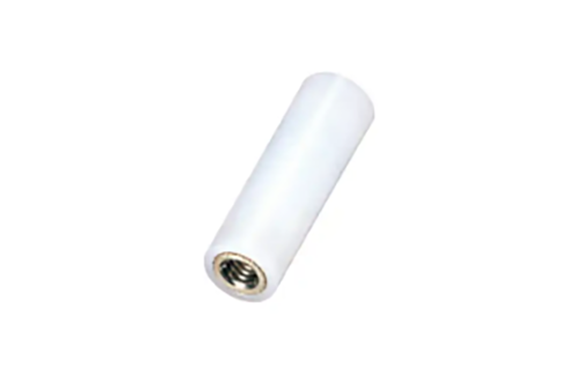

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: AMR-2000E

Resin part

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Metal Part

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

Tolerance of L
: ±0.1 up to L=15
, ±0.15 from L=16

Thread diameter (pitch)	L	Part Number	Pilot hole length
M2 (0.4)	8	AMR-2008E	penetration
	9	AMR-2009E
	10	AMR-2010E
	11	AMR-2011E
	12	AMR-2012E
	13	AMR-2013E
	14	AMR-2014E
	15	AMR-2015E
	16	AMR-2016E
	17	AMR-2017E
	18	AMR-2018E
	19	AMR-2019E
	20	AMR-2020E
	twenty five	AMR-2025E	5
	30	AMR-2030E	5
