Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-1000PH

Specification

Material

Stainless steel (SUS304)

process

Degreasing

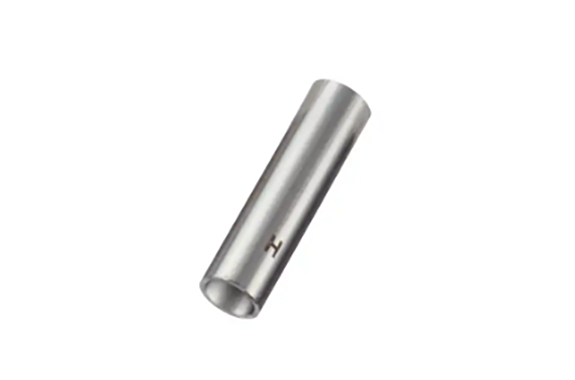

*The stainless steel 304 spacer is made of high-grade stainless steel.  The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance
: ±0.1 up to L=30
, ±0.2 up to L=35-40,
±0.3 up to L=45-50

Screw diameter	L	Part Number
M10	5	CU-1005PH
	6	CU-1006PH
	7	CU-1007PH
	8	CU-1008PH
	9	CU-1009PH
	10	CU-1010PH
	11	CU-1011PH
	12	CU-1012PH
	13	CU-1013PH
	14	CU-1014PH
	15	CU-1015PH
	16	CU-1016PH
	17	CU-1017PH
	18	CU-1018PH
	19	CU-1019PH
	20	CU-1020PH
	twenty two	CU-1022PH
	twenty five	CU-1025PH
	28	CU-1028PH
	30	CU-1030PH
	35	CU-1035PH
	40	CU-1040PH
	45	CU-1045PH
	50	CU-1050PH
