Manufacturer: Hirosugi Instruments Co., Ltd.

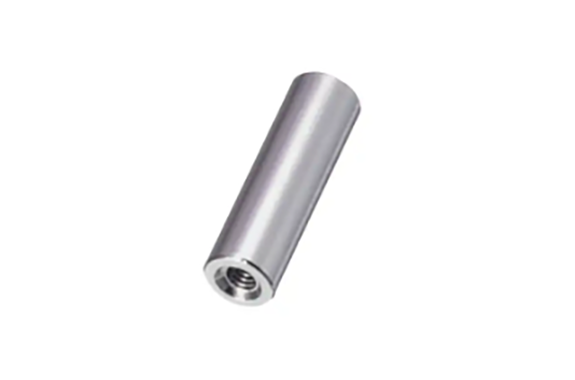

Model: ARL-500E

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

Process

Pickling

Exterior drawings

L tolerance:
±0.1 up to L=60,
±0.2 from L=65 to 100
, ±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	ARL-508E	Fully threaded
	10	ARL-510E
	12	ARL-512E
	15	ARL-515E
	18	ARL-518E
	20	ARL-520E
	twenty five	ARL-525E	10
	30	ARL-530E	10
	35	ARL-535E	10
	40	ARL-540E	10
	45	ARL-545E	10
	50	ARL-550E	10
	55	ARL-555E	10
	60	ARL-560E	10
	65	ARL-565E	10
	70	ARL-570E	10
	75	ARL-575E	10
	80	ARL-580E	10
	85	ARL-585E	10
	90	ARL-590E	10
	95	ARL-595E	10
	100	ARL-5100E	10
	110	ARL-5110E	10
	120	ARL-5120E	10
	125	ARL-5125E	10
	130	ARL-5130E	10
	140	ARL-5140E	10
	150	ARL-5150E	10
		ARL-425E	8
	26	ARL-426E	8
	27	ARL-427E	8
	28	ARL-428E	8
	29	ARL-429E	8
	30	ARL-430E	8
	35	ARL-435E	8
	40	ARL-440E	8
	45	ARL-445E	8
	50	ARL-450E	8
	55	ARL-455E	8
	60	ARL-460E	8
