Manufacturer: Hirosugi Instruments Co., Ltd.

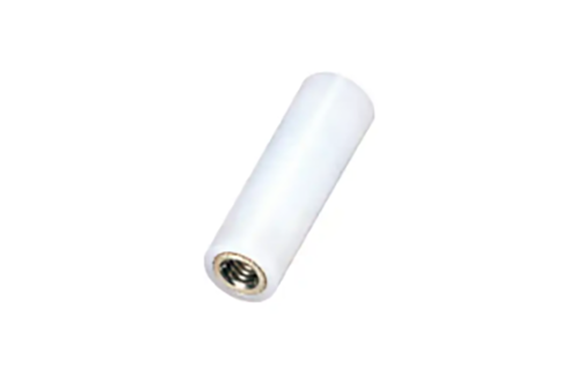

Model: AMR-2600E

Resin part

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Metal Part

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

Tolerance of L
: ±0.1 up to L=15
, ±0.15 from L=16

Thread diameter (pitch)	L	Part Number	Pilot hole length
M2.6 (0.45)	8	AMR-2608E	penetration
	9	AMR-2609E
	10	AMR-2610E
	11	AMR-2611E
	12	AMR-2612E
	13	AMR-2613E
	14	AMR-2614E
	15	AMR-2615E
	16	AMR-2616E
	17	AMR-2617E
	18	AMR-2618E
	19	AMR-2619E
	20	AMR-2620E
	twenty five	AMR-2625E	5
	30	AMR-2630E	5
