Manufacturer: Hirosugi Instruments Co., Ltd.

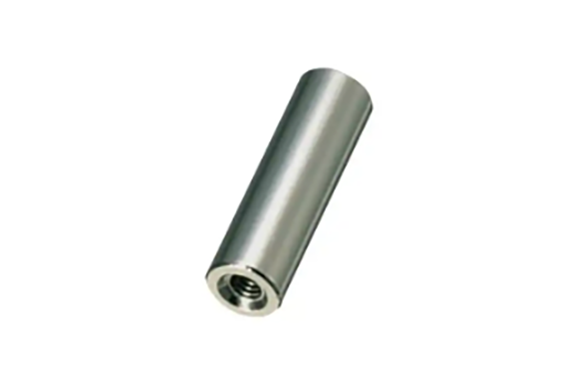

Model: ARL-500KE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Electroless Nickel Plating

Exterior drawings

L tolerance:
±0.1 up to L=60,
±0.2 from L=65 to 100
, ±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	ARL-508KE	Fully threaded
	10	ARL-510KE
	12	ARL-512KE
	15	ARL-515KE
	18	ARL-518KE
	20	ARL-520KE
	twenty five	ARL-525KE	10
	30	ARL-530KE	10
	35	ARL-535KE	10
	40	ARL-540KE	10
	45	ARL-545KE	10
	50	ARL-550KE	10
	55	ARL-555KE	10
	60	ARL-560KE	10
	65	ARL-565KE	10
	70	ARL-570KE	10
	75	ARL-575KE	10
	80	ARL-580KE	10
	85	ARL-585KE	10
	90	ARL-590KE	10
	95	ARL-595KE	10
	100	ARL-5100KE	10
	110	ARL-5110KE	10
	120	ARL-5120KE	10
	125	ARL-5125KE	10
	130	ARL-5130KE	10
	140	ARL-5140KE	10
	150	ARL-5150KE	10
	twenty five	ARL-425KE	8
	26	ARL-426KE	8
	27	ARL-427KE	8
	28	ARL-428KE	8
	29	ARL-429KE	8
	30	ARL-430KE	8
	35	ARL-435KE	8
	40	ARL-440KE	8
	45	ARL-445KE	8
	50	ARL-450KE	8
	55	ARL-455KE	8
	60	ARL-460KE	8
