Manufacturer: Hirosugi Instruments Co., Ltd.

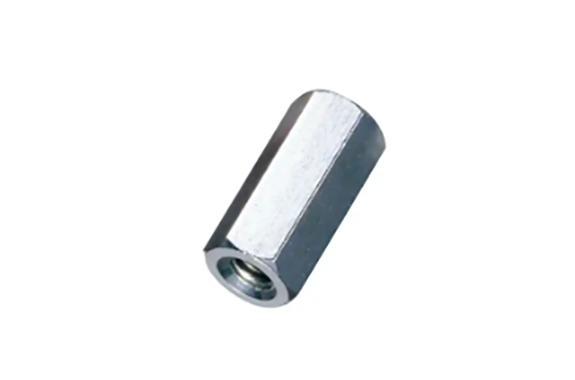

Model: ASF-600E

Specification

Material

Free-cutting steel (SUM)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M6 (1.0)	10	ASF-610E	Fully threaded
	15	ASF-615E
	20	ASF-620E
	twenty five	ASF-625E	10
	30	ASF-630E	14
	35	ASF-635E	14
	40	ASF-640E	14
	45	ASF-645E	14
	50	ASF-650E	14
	55	ASF-655E	14
	60	ASF-660E	14
	65	ASF-665E	14
	70	ASF-670E	14
	75	ASF-675E	14
	80	ASF-680E	14
	85	ASF-685E	14
	90	ASF-690E	14
	95	ASF-695E	14
	100	ASF-6100E	14
	110	ASF-6110E	14
	120	ASF-6120E	14
	125	ASF-6125E	14
	130	ASF-6130E	14
	140	ASF-6140E	14
	150	ASF-6150E	14
