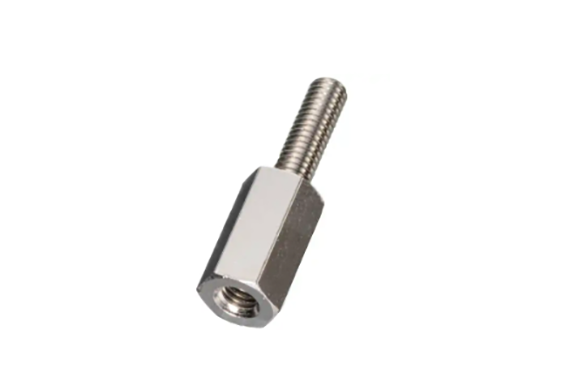

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: LSU-300-10

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

Male screw length 10mm

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	LSU-304-10	2
	4.5	LSU-304.5-10	2.5
	5	LSU-305-10	3
	5.5	LSU-305.5-10	3.5
	6	LSU-306-10	4
	6.5	LSU-306.5-10	4.5
	7	LSU-307-10	5
	7.5	LSU-307.5-10	5.5
	8	LSU-308-10	6
	8.5	LSU-308.5-10	6
	9	LSU-309-10	6
	9.5	LSU-309.5-10	6
	10	LSU-310-10	6
	11	LSU-311-10	6
	12	LSU-312-10	6
	12.5	LSU-312.5-10	6
	13	LSU-313-10	6
	14	LSU-314-10	6
	15	LSU-315-10	6
	16	LSU-316-10	6
	16.5	LSU-316.5-10	6
	17	LSU-317-10	6
	17.5	LSU-317.5-10	6
	18	LSU-318-10	6
	19	LSU-319-10	6
	20	LSU-320-10	6
	twenty one	LSU-321-10	6
	twenty two	LSU-322-10	6
	twenty three	LSU-323-10	6
	twenty four	LSU-324-10	6
	twenty five	LSU-325-10	6
	26	LSU-326-10	6
	27	LSU-327-10	6
	28	LSU-328-10	6
	29	LSU-329-10	6
	30	LSU-330-10	6
	31	LSU-331-10	6
	32	LSU-332-10	6
	33	LSU-333-10	6
	34	LSU-334-10	6
	35	LSU-335-10	6
	36	LSU-336-10	6
	37	LSU-337-10	6
	38	LSU-338-10	6
	39	LSU-339-10	6
	40	LSU-340-10	6
	41	LSU-341-10	6
	42	LSU-342-10	6
	43	LSU-343-10	6
	44	LSU-344-10	6
	45	LSU-345-10	6
	46	LSU-346-10	6
	47	LSU-347-10	6
	48	LSU-348-10	6
	49	LSU-349-10	6
	50	LSU-350-10	6
	51	LSU-351-10	6
	52	LSU-352-10	6
	53	LSU-353-10	6
	54	LSU-354-10	6
	55	LSU-355-10	6
	56	LSU-356-10	6
	57	LSU-357-10	6
	58	LSU-358-10	6
59	LSU-359-10	6
60	LSU-360-10	6
