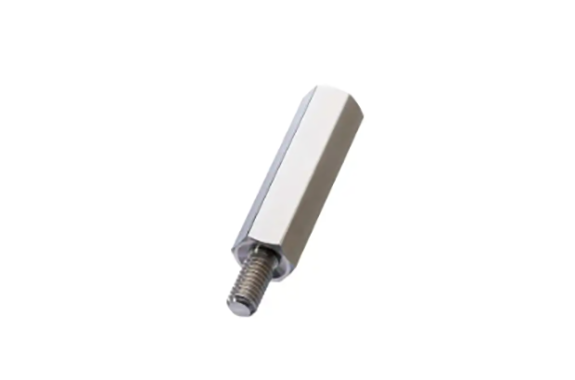

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSU-300-04D

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

Tolerance of L
: ±0.1 up to L=60
, ±0.2 from L=61

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	BSU-304-04D	2
	4.5	BSU-304.5-04D	2
	5	BSU-305-04D	3
	5.5	BSU-305.5-04D	3
	6	BSU-306-04D	4
	6.5	BSU-306.5-04D	4
	7	BSU-307-04D	5
	7.5	BSU-307.5-04D	5.5
	8	BSU-308-04D	6
	8.5	BSU-308.5-04D	6
	9	BSU-309-04D	6
	9.5	BSU-309.5-04D	6
	10	BSU-310-04D	6
	10.5	BSU-310.5-04D	6
	11	BSU-311-04D	6
	11.5	BSU-311.5-04D	6
	12	BSU-312-04D	6
	12.5	BSU-312.5-04D	6
	13	BSU-313-04D	6
	13.5	BSU-313.5-04D	6
	14	BSU-314-04D	6
	14.5	BSU-314.5-04D	6
	15	BSU-315-04D	6
	15.5	BSU-315.5-04D	6
	16	BSU-316-04D	6
	16.5	BSU-316.5-04D	6
	17	BSU-317-04D	6
	17.5	BSU-317.5-04D	6
	18	BSU-318-04D	6
	18.5	BSU-318.5-04D	6
	19	BSU-319-04D	6
	19.5	BSU-319.5-04D	6
	20	BSU-320-04D	6
	20.5	BSU-320.5-04D	6
	twenty one	BSU-321-04D	6
	21.5	BSU-321.5-04D	6
	twenty two	BSU-322-04D	6
	22.5	BSU-322.5-04D	6
	twenty three	BSU-323-04D	6
	23.5	BSU-323.5-04D	6
	twenty four	BSU-324-04D	6
	24.5	BSU-324.5-04D	6
	twenty five	BSU-325-04D	6
	25.5	BSU-325.5-04D	6
	26	BSU-326-04D	6
	26.5	BSU-326.5-04D	6
	27	BSU-327-04D	6
	27.5	BSU-327.5-04D	6
	28	BSU-328-04D	6
	28.5	BSU-328.5-04D	6
	29	BSU-329-04D	6
	29.5	BSU-329.5-04D	6
	30	BSU-330-04D	6
	31	BSU-331-04D	6
	32	BSU-332-04D	6
	33	BSU-333-04D	6
	34	BSU-334-04D	6
	35	BSU-335-04D	6
	36	BSU-336-04D	6
	37	BSU-337-04D	6
	38	BSU-338-04D	6
	39	BSU-339-04D	6
	40	BSU-340-04D	6
	41	BSU-341-04D	6
42	BSU-342-04D	6
43	BSU-343-04D	6
44	BSU-344-04D	6
45	BSU-345-04D	6
46	BSU-346-04D	6
47	BSU-347-04D	6
48	BSU-348-04D	6
49	BSU-349-04D	6
50	BSU-350-04D	6
51	BSU-351-04D	6
52	BSU-352-04D	6
53	BSU-353-04D	6
54	BSU-354-04D	6
55	BSU-355-04D	6
56	BSU-356-04D	6
57	BSU-357-04D	6
58	BSU-358-04D	6
59	BSU-359-04D	6
60	BSU-360-04D	6
61	BSU-361-04D	6
62	BSU-362-04D	6
63	BSU-363-04D	6
64	BSU-364-04D	6
65	BSU-365-04D	6
66	BSU-366-04D	6
67	BSU-367-04D	6
68	BSU-368-04D	6
69	BSU-369-04D	6
70	BSU-370-04D	6
71	BSU-371-04D	6
72	BSU-372-04D	6
73	BSU-373-04D	6
74	BSU-374-04D	6
75	BSU-375-04D	6
76	BSU-376-04D	6
77	BSU-377-04D	6
78	BSU-378-04D	6
79	BSU-379-04D	6
80	BSU-380-04D	6
81	BSU-381-04D	6
82	BSU-382-04D	6
83	BSU-383-04D	6
84	BSU-384-04D	6
85	BSU-385-04D	6
86	BSU-386-04D	6
87	BSU-387-04D	6
88	BSU-388-04D	6
89	BSU-389-04D	6
90	BSU-390-04D	6
91	BSU-391-04D	6
92	BSU-392-04D	6
93	BSU-393-04D	6
94	BSU-394-04D	6
95	BSU-395-04D	6
96	BSU-396-04D	6
97	BSU-397-04D	6
98	BSU-398-04D	6
99	BSU-399-04D	6
100	BSU-3100-04D	6
