Manufacturer: Hirosugi Instruments Co., Ltd.

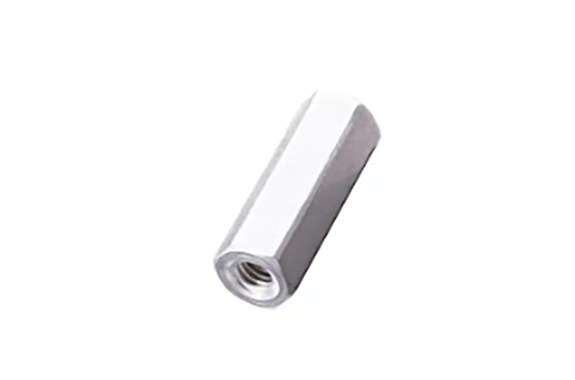

Model: ASL-300E

Specification

Material

Lead-free free-cutting aluminum (CB156)
Lead content 10 ppm or less

process

Pickling

Exterior drawings

Lead-free recognition groove on end surface
L tolerance:
±0.1 up to L=60,
±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	ASL-304E	Fully threaded
	4.5	ASL-304.5E
	5	ASL-305E
	5.5	ASL-305.5E
	6	ASL-306E
	6.5	ASL-306.5E
	7	ASL-307E
	7.5	ASL-307.5E
	8	ASL-308E
	8.5	ASL-308.5E
	9	ASL-309E
	9.5	ASL-309.5E
	10	ASL-310E
	11	ASL-311E
	12	ASL-312E
	12.5	ASL-312.5E
	13	ASL-313E
	14	ASL-314E
	15	ASL-315E
	16	ASL-316E	6
	16.5	ASL-316.5E	6
	17	ASL-317E	6
	17.5	ASL-317.5E	6
	18	ASL-318E	6
	19	ASL-319E	6
	20	ASL-320E	6
	twenty one	ASL-321E	6
	twenty two	ASL-322E	6
	twenty three	ASL-323E	6
	twenty four	ASL-324E	6
	twenty five	ASL-325E	6
	26	ASL-326E	6
	27	ASL-327E	6
	28	ASL-328E	6
	29	ASL-329E	6
	30	ASL-330E	6
	35	ASL-335E	6
	40	ASL-340E	6
	45	ASL-345E	6
	50	ASL-350E	6
	55	ASL-355E	6
	60	ASL-360E	6
	65	ASL-365E	6
	70	ASL-370E	6
	75	ASL-375E	6
	80	ASL-380E	6
	85	ASL-385E	6
	90	ASL-390E	6
	95	ASL-395E	6
	100	ASL-3100E	6
