Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSE-300N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

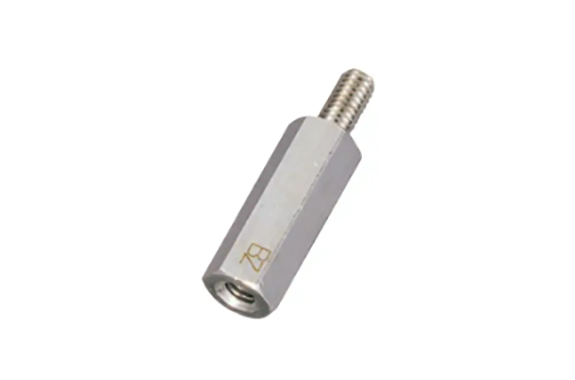

*The body displays the BZ laser mark for identification.

Exterior drawings

L tolerance
: ±0.1 up to L=60
, ±0.2 from L=61 to 100

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	BSE-304N	2.5
	4.5	BSE-304.5N	2.5
	5	BSE-305N	3.5
	5.5	BSE-305.5N	3.5
	6	BSE-306N	4
	6.5	BSE-306.5N	4
	7	BSE-307N	5
	7.5	BSE-307.5N	5
	8	BSE-308N	6
	8.5	BSE-308.5N	6
	9	BSE-309N	6
	9.5	BSE-309.5N	6
	10	BSE-310N	6
	10.5	BSE-310.5N	6
	11	BSE-311N	6
	11.5	BSE-311.5N	6
	12	BSE-312N	6
	12.5	BSE-312.5N	6
	13	BSE-313N	6
	13.5	BSE-313.5N	6
	14	BSE-314N	6
	14.5	BSE-314.5N	6
	15	BSE-315N	6
	15.5	BSE-315.5N	6
	16	BSE-316N	6
	16.5	BSE-316.5N	6
	17	BSE-317N	6
	17.5	BSE-317.5N	6
	18	BSE-318N	6
	18.5	BSE-318.5N	6
	19	BSE-319N	6
	19.5	BSE-319.5N	6
	20	BSE-320N	6
	20.5	BSE-320.5N	6
	twenty one	BSE-321N	6
	21.5	BSE-321.5N	6
	twenty two	BSE-322N	6
	22.5	BSE-322.5N	6
	twenty three	BSE-323N	6
	23.5	BSE-323.5N	6
	twenty four	BSE-324N	6
	24.5	BSE-324.5N	6
	twenty five	BSE-325N	6
	25.5	BSE-325.5N	6
	26	BSE-326N	6
	26.5	BSE-326.5N	6
	27	BSE-327N	6
	27.5	BSE-327.5N	6
	28	BSE-328N	6
	28.5	BSE-328.5N	6
	29	BSE-329N	6
	29.5	BSE-329.5N	6
	30	BSE-330N	6
	31	BSE-331N	6
	32	BSE-332N	6
	33	BSE-333N	6
	34	BSE-334N	6
	35	BSE-335N	6
	36	BSE-336N	6
	37	BSE-337N	6
	38	BSE-338N	6
	39	BSE-339N	6
	40	BSE-340N	6
	41	BSE-341N	6
42	BSE-342N	6
43	BSE-343N	6
44	BSE-344N	6
45	BSE-345N	6
46	BSE-346N	6
47	BSE-347N	6
48	BSE-348N	6
49	BSE-349N	6
50	BSE-350N	6
51	BSE-351N	6
52	BSE-352N	6
53	BSE-353N	6
54	BSE-354N	6
55	BSE-355N	6
56	BSE-356N	6
57	BSE-357N	6
58	BSE-358N	6
59	BSE-359N	6
60	BSE-360N	6
61	BSE-361N	6
62	BSE-362N	6
63	BSE-363N	6
64	BSE-364N	6
65	BSE-365N	6
66	BSE-366N	6
67	BSE-367N	6
68	BSE-368N	6
69	BSE-369N	6
70	BSE-370N	6
71	BSE-371N	6
72	BSE-372N	6
73	BSE-373N	6
74	BSE-374N	6
75	BSE-375N	6
76	BSE-376N	6
77	BSE-377N	6
78	BSE-378N	6
79	BSE-379N	6
80	BSE-380N	6
81	BSE-381N	6
82	BSE-382N	6
83	BSE-383N	6
84	BSE-384N	6
85	BSE-385N	6
86	BSE-386N	6
87	BSE-387N	6
88	BSE-388N	6
89	BSE-389N	6
90	BSE-390N	6
91	BSE-391N	6
92	BSE-392N	6
93	BSE-393N	6
94	BSE-394N	6
95	BSE-395N	6
96	BSE-396N	6
97	BSE-397N	6
98	BSE-398N	6
99	BSE-399N	6
100	BSE-3100N	6
