Manufacturer: Hirosugi Instruments Co., Ltd.

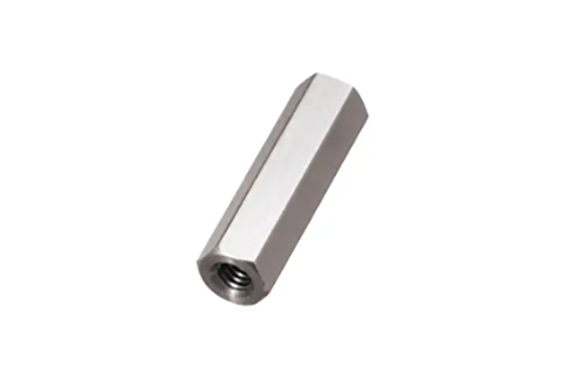

Model: ASL-300KE

Specification

Material

Lead-free free-cutting aluminum (CB156)
Lead content 10 ppm or less

process

Electroless Nickel Plating

Exterior drawings

Lead-free recognition groove on end surface
L tolerance:
±0.1 up to L=60,
±0.2 from L=65

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	4	ASL-304KE	Fully threaded
	4.5	ASL-304.5KE
	5	ASL-305KE
	5.5	ASL-305.5KE
	6	ASL-306KE
	6.5	ASL-306.5KE
	7	ASL-307KE
	7.5	ASL-307.5KE
	8	ASL-308KE
	8.5	ASL-308.5KE
	9	ASL-309KE
	9.5	ASL-309.5KE
	10	ASL-310KE
	11	ASL-311KE
	12	ASL-312KE
	12.5	ASL-312.5KE
	13	ASL-313KE
	14	ASL-314KE
	15	ASL-315KE
	16	ASL-316KE	6
	16.5	ASL-316.5KE	6
	17	ASL-317KE	6
	17.5	ASL-317.5KE	6
	18	ASL-318KE	6
	19	ASL-319KE	6
	20	ASL-320KE	6
	twenty one	ASL-321KE	6
	twenty two	ASL-322KE	6
	twenty three	ASL-323KE	6
	twenty four	ASL-324KE	6
	twenty five	ASL-325KE	6
	26	ASL-326KE	6
	27	ASL-327KE	6
	28	ASL-328KE	6
	29	ASL-329KE	6
	30	ASL-330KE	6
	35	ASL-335KE	6
	40	ASL-340KE	6
	45	ASL-345KE	6
	50	ASL-350KE	6
	55	ASL-355KE	6
	60	ASL-360KE	6
	65	ASL-365KE	6
	70	ASL-370KE	6
	75	ASL-375KE	6
	80	ASL-380KE	6
	85	ASL-385KE	6
	90	ASL-390KE	6
	95	ASL-395KE	6
	100	ASL-3100KE	6
