Manufacturer: Hirosugi Instruments Co., Ltd.

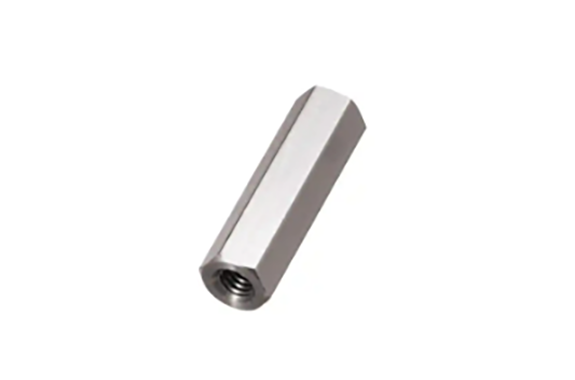

Model: ASU-500

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=62 to 100,
±0.3 from L=105

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	ASU-508	Fully threaded
	9	ASU-509
	10	ASU-510
	11	ASU-511
	12	ASU-512
	13	ASU-513
	14	ASU-514
	15	ASU-515
	16	ASU-516
	18	ASU-518
	19	ASU-519
	20	ASU-520
	twenty three	ASU-523	10
	twenty five	ASU-525	10
	27	ASU-527	10
	30	ASU-530	10
	33	ASU-533	10
	35	ASU-535	10
	37	ASU-537	10
	40	ASU-540	10
	43	ASU-543	10
	45	ASU-545	10
	48	ASU-548	10
	50	ASU-550	10
	52	ASU-552	10
	55	ASU-555	10
	57	ASU-557	10
	60	ASU-560	10
	62	ASU-562	10
	65	ASU-565	10
	68	ASU-568	10
	70	ASU-570	10
	72	ASU-572	10
	75	ASU-575	10
	78	ASU-578	10
	80	ASU-580	10
	83	ASU-583	10
	85	ASU-585	10
	88	ASU-588	10
	90	ASU-590	10
	92	ASU-592	10
	95	ASU-595	10
	97	ASU-597	10
	100	ASU-5100	10
	105	ASU-5105	10
	110	ASU-5110	10
	115	ASU-5115	10
	120	ASU-5120	10
	125	ASU-5125	10
	130	ASU-5130	10
	135	ASU-5135	10
	140	ASU-5140	10
	145	ASU-5145	10
	150	ASU-5150	10
