Manufacturer: Hirosugi Instruments Co., Ltd.
Model: KRB-2000B

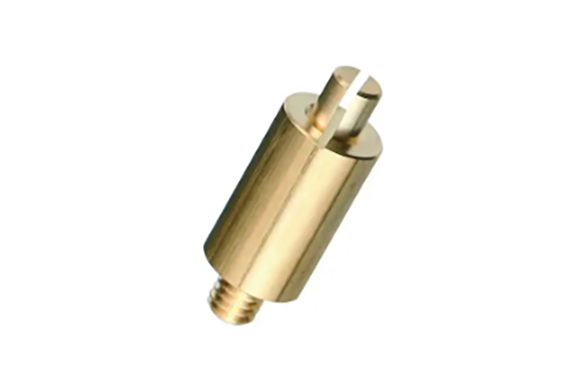

This is a spacer type terminal that is attached to the board by soldering.

Specification

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Gold flash (nickel undercoat)

Exterior drawings

Thread diameter (pitch)	L	Part Number
M2 (0.4)	1.8	KRB-2001.8B
	3	KRB-2003B
	4	KRB-2004B
	5	KRB-2005B
	6	KRB-2006B
	7	KRB-2007B
	8	KRB-2008B
	9	KRB-2009B
	10	KRB-2010B
	11	KRB-2011B
	12	KRB-2012B
	13	KRB-2013B
	14	KRB-2014B
	15	KRB-2015B
