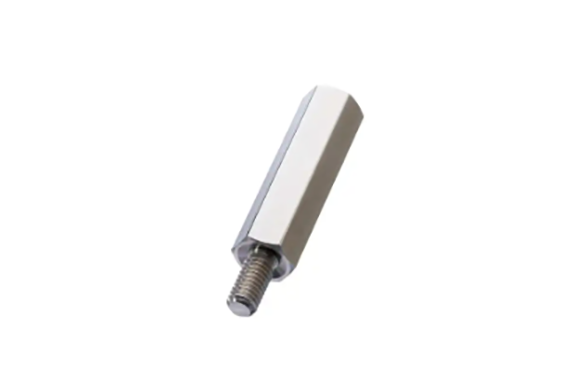

Hirosugi BSU-400D Stainless Steel Spacer (hexagonal) With Relief Groove And Burr Absorbing

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSU-400D

Specification

Material: Free-cutting stainless steel (SUS303)
process: Degreasing

Exterior drawings

L tolerance: drawing
±0.1 up to L=60
, ±0.2 from L=61 to L=100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	6	BSU-406D	3.5
	6.5	BSU-406.5D	3.5
	7	BSU-407D	4.5
	7.5	BSU-407.5D	4.5
	8	BSU-408D	5.5
	8.5	BSU-408.5D	5.5
	9	BSU-409D	6
	9.5	BSU-409.5D	6
	10	BSU-410D	7
	10.5	BSU-410.5D	7
	11	BSU-411D	8
	11.5	BSU-411.5D	8
	12	BSU-412D	8
	12.5	BSU-412.5D	8
	13	BSU-413D	8
	13.5	BSU-413.5D	8
	14	BSU-414D	8
	14.5	BSU-414.5D	8
	15	BSU-415D	8
	15.5	BSU-415.5D	8
	16	BSU-416D	8
	16.5	BSU-416.5D	8
	17	BSU-417D	8
	17.5	BSU-417.5D	8
	18	BSU-418D	8
	18.5	BSU-418.5D	8
	19	BSU-419D	8
	19.5	BSU-419.5D	8
	20	BSU-420D	8
	20.5	BSU-420.5D	8
	twenty one	BSU-421D	8
	21.5	BSU-421.5D	8
	twenty two	BSU-422D	8
	22.5	BSU-422.5D	8
	twenty three	BSU-423D	8
	23.5	BSU-423.5D	8
	twenty four	BSU-424D	8
	24.5	BSU-424.5D	8
	twenty five	BSU-425D	8
	25.5	BSU-425.5D	8
	26	BSU-426D	8
	26.5	BSU-426.5D	8
	27	BSU-427D	8
	27.5	BSU-427.5D	8
	28	BSU-428D	8
	28.5	BSU-428.5D	8
	29	BSU-429D	8
	29.5	BSU-429.5D	8
	30	BSU-430D	8
	31	BSU-431D	8
	32	BSU-432D	8
	33	BSU-433D	8
	34	BSU-434D	8
	35	BSU-435D	8
	36	BSU-436D	8
	37	BSU-437D	8
	38	BSU-438D	8
	39	BSU-439D	8
	40	BSU-440D	8
	41	BSU-441D	8
	42	BSU-442D	8
	43	BSU-443D	8
	44	BSU-444D	8
	45	BSU-445D	8
46	BSU-446D	8
47	BSU-447D	8
48	BSU-448D	8
49	BSU-449D	8
50	BSU-450D	8
51	BSU-451D	8
52	BSU-452D	8
53	BSU-453D	8
54	BSU-454D	8
55	BSU-455D	8
56	BSU-456D	8
57	BSU-457D	8
58	BSU-458D	8
59	BSU-459D	8
60	BSU-460D	8
61	BSU-461D	8
62	BSU-462D	8
63	BSU-463D	8
64	BSU-464D	8
65	BSU-465D	8
66	BSU-466D	8
67	BSU-467D	8
68	BSU-468D	8
69	BSU-469D	8
70	BSU-470D	8
71	BSU-471D	8
72	BSU-472D	8
73	BSU-473D	8
74	BSU-474D	8
75	BSU-475D	8
76	BSU-476D	8
77	BSU-477D	8
78	BSU-478D	8
79	BSU-479D	8
80	BSU-480D	8
81	BSU-481D	8
82	BSU-482D	8
83	BSU-483D	8
84	BSU-484D	8
85	BSU-485D	8
86	BSU-486D	8
87	BSU-487D	8
88	BSU-488D	8
89	BSU-489D	8
90	BSU-490D	8
91	BSU-491D	8
92	BSU-492D	8
93	BSU-493D	8
94	BSU-494D	8
95	BSU-495D	8
96	BSU-496D	8
97	BSU-497D	8
98	BSU-498D	8
99	BSU-499D	8
100	BSU-4100D	8
110	BSU-4110D	8
120	BSU-4120D	8
130	BSU-4130D	8
140	BSU-4140D	8
150	BSU-4150D	8
