Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASU-500U

Specification

Material

Stainless steel (SUS316)

process

Degreasing

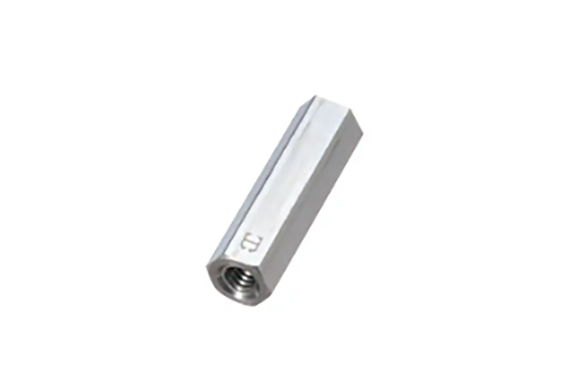

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved on the spacer body .

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	ASU-508U	Fully threaded
	10	ASU-510U
	12	ASU-512U
	15	ASU-515U
	18	ASU-518U
	20	ASU-520U
	twenty five	ASU-525U	10
	30	ASU-530U	10
	35	ASU-535U	10
	40	ASU-540U	10
	45	ASU-545U	10
	50	ASU-550U	10
	55	ASU-555U	10
	60	ASU-560U	10
	65	ASU-565U	10
	70	ASU-570U	10
	75	ASU-575U	10
	80	ASU-580U	10
	85	ASU-585U	10
	90	ASU-590U	10
	95	ASU-595U	10
	100	ASU-5100U	10
	110	ASU-5110U	10
	120	ASU-5120U	10
	125	ASU-5125U	10
	130	ASU-5130U	10
	140	ASU-5140U	10
	150	ASU-5150U	10
