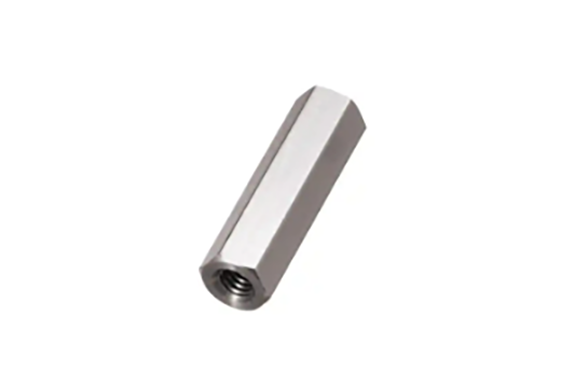

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: ASU-600

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=62 to 100,
±0.3 from L=105

Thread diameter (pitch)	L	Part Number	ℓ1
M6 (1.0)	10	ASU-610	Fully threaded
	12	ASU-612
	15	ASU-615
	17	ASU-617
	20	ASU-620
	twenty three	ASU-623	7
	twenty five	ASU-625	10
	27	ASU-627	10
	30	ASU-630	14
	33	ASU-633	14
	35	ASU-635	14
	37	ASU-637	14
	40	ASU-640	14
	43	ASU-643	14
	45	ASU-645	14
	48	ASU-648	14
	50	ASU-650	14
	52	ASU-652	14
	55	ASU-655	14
	57	ASU-657	14
	60	ASU-660	14
	62	ASU-662	14
	65	ASU-665	14
	68	ASU-668	14
	70	ASU-670	14
	72	ASU-672	14
	75	ASU-675	14
	78	ASU-678	14
	80	ASU-680	14
	85	ASU-685	14
	90	ASU-690	14
	95	ASU-695	14
	100	ASU-6100	14
	105	ASU-6105	14
	110	ASU-6110	14
	115	ASU-6115	14
	120	ASU-6120	14
	125	ASU-6125	14
	130	ASU-6130	14
	135	ASU-6135	14
	140	ASU-6140	14
	145	ASU-6145	14
	150	ASU-6150	14
