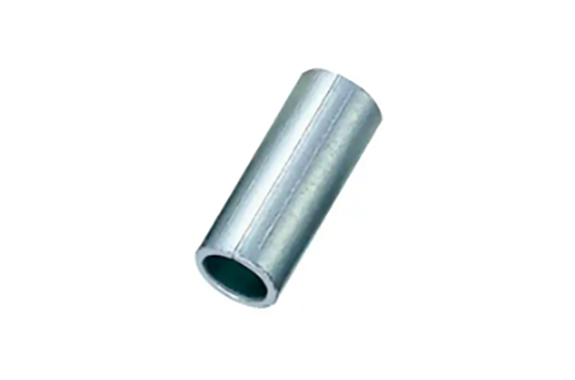

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CF-600ZE

Specification

Material

Steel plate (SPCC)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.05 up to L=10
, ±0.1 from L=10.5 to 20,
±0.2 from L=22

Screw diameter	L	Part Number
For M6	3	CF-603ZE
	3.5	CF-603.5ZE
	4	CF-604ZE
	4.5	CF-604.5ZE
	5	CF-605ZE
	5.5	CF-605.5ZE
	6	CF-606ZE
	6.5	CF-606.5ZE
	7	CF-607ZE
	7.5	CF-607.5ZE
	8	CF-608ZE
	8.5	CF-608.5ZE
	9	CF-609ZE
	9.5	CF-609.5ZE
	10	CF-610ZE
	10.5	CF-610.5ZE
	11	CF-611ZE
	11.5	CF-611.5ZE
	12	CF-612ZE
	12.5	CF-612.5ZE
	13	CF-613ZE
	14	CF-614ZE
	15	CF-615ZE
	16	CF-616ZE
	17	CF-617ZE
	18	CF-618ZE
	19	CF-619ZE
	20	CF-620ZE
	twenty two	CF-622ZE
	twenty five	CF-625ZE
	28	CF-628ZE
	30	CF-630ZE
	32	CF-632ZE
	35	CF-635ZE
	40	CF-640ZE
	45	CF-645ZE
