Manufacturer: Hirosugi Instruments Co., Ltd.

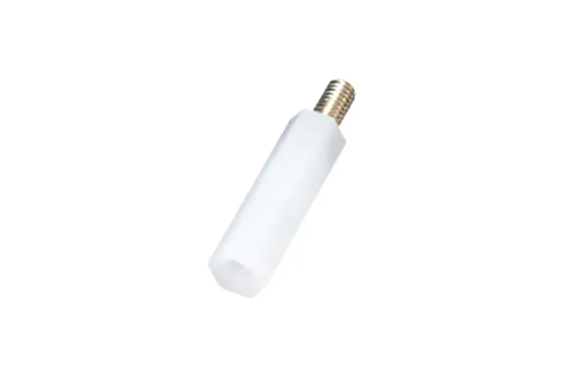

Model: BS-2500WE

Spacer

Material

Duracon (POM)

color

milky white

Heat distortion temperature

1.82Mpa…110℃

UL standard

UL94-HB (material)

Male screw

Material

Free-cutting brass (C3604BD)
Cadmium content less than 75 ppm

process

Nickel plating (Ni)

Exterior drawings

Tolerance of L
: ±0.1 up to L=15.5,
±0.2 from L=16

Thread diameter (pitch)	L	Part Number
M2.5 (0.45)	8	BS-2508WE
	8.5	BS-2508.5WE
	9	BS-2509WE
	9.5	BS-2509.5WE
	10	BS-2510WE
	10.5	BS-2510.5WE
	11	BS-2511WE
	11.5	BS-2511.5WE
	12	BS-2512WE
	12.5	BS-2512.5WE
	13	BS-2513WE
	13.5	BS-2513.5WE
	14	BS-2514WE
	14.5	BS-2514.5WE
	15	BS-2515WE
	15.5	BS-2515.5WE
	16	BS-2516WE
	16.5	BS-2516.5WE
	17	BS-2517WE
	17.5	BS-2517.5WE
	18	BS-2518WE
	18.5	BS-2518.5WE
	19	BS-2519WE
	19.5	BS-2519.5WE
	20	BS-2520WE
	18.5	BS-2018.5WE
	19	BS-2019WE
	19.5	BS-2019.5WE
	20	BS-2020WE
	twenty one	BS-2021WE
	twenty two	BS-2022WE
	twenty three	BS-2023WE
	twenty four	BS-2024WE
	twenty five	BS-2025WE
	26	BS-2026WE
	27	BS-2027WE
	28	BS-2028WE
	29	BS-2029WE
	30	BS-2030WE
