Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSE-400N

Specification

Material

Lead-free free-cutting brass (bismuth-based C6801BD)
Lead content less than 100 ppm,
Cadmium content less than 10 ppm

process

Nickel plating (Ni)

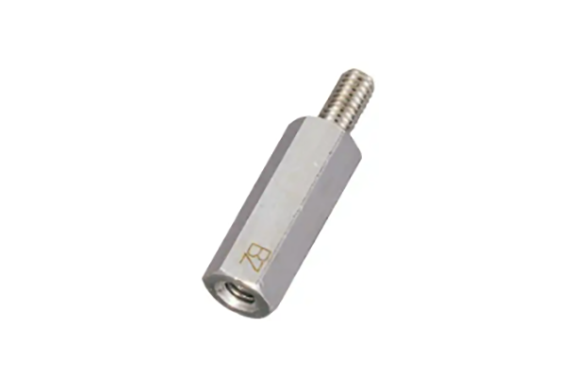

*The body displays the BZ laser mark for identification.

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M4 (0.7)	6	BSE-406N	3.5
	7	BSE-407N	4.5
	8	BSE-408N	5.5
	9	BSE-409N	6
	10	BSE-410N	7
	11	BSE-411N	8
	12	BSE-412N	8
	13	BSE-413N	8
	14	BSE-414N	8
	15	BSE-415N	8
	16	BSE-416N	8
	17	BSE-417N	8
	18	BSE-418N	8
	19	BSE-419N	8
	20	BSE-420N	8
	twenty one	BSE-421N	8
	twenty two	BSE-422N	8
	twenty three	BSE-423N	8
	twenty four	BSE-424N	8
	twenty five	BSE-425N	8
	26	BSE-426N	8
	27	BSE-427N	8
	28	BSE-428N	8
	29	BSE-429N	8
	30	BSE-430N	8
	31	BSE-431N	8
	32	BSE-432N	8
	33	BSE-433N	8
	34	BSE-434N	8
	35	BSE-435N	8
	36	BSE-436N	8
	37	BSE-437N	8
	38	BSE-438N	8
	39	BSE-439N	8
	40	BSE-440N	8
	45	BSE-445N	8
	50	BSE-450N	8
	55	BSE-455N	8
	60	BSE-460N	8
	65	BSE-465N	8
	70	BSE-470N	8
	75	BSE-475N	8
	80	BSE-480N	8
	85	BSE-485N	8
	90	BSE-490N	8
	95	BSE-495N	8
	100	BSE-4100N	8
	110	BSE-4110N	8
	120	BSE-4120N	8
	130	BSE-4130N	8
	140	BSE-4140N	8
	150	BSE-4150N	8
