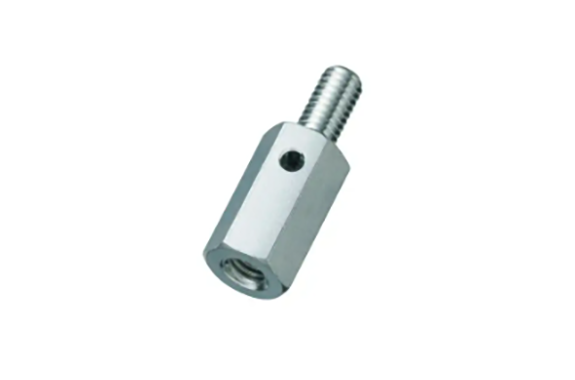

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSF-300AE

Specification

Material

Free-cutting steel (SUM)

process

Trivalent chromium chromate treatment

Exterior drawings

B dimension
L=8 up to 6
L=9 to 7.5

Thread diameter (pitch)	L	Part Number	ℓ1
M3 (0.5)	8	BSF-308AE	5
	9	BSF-309AE	6
	10	BSF-310AE	6
	11	BSF-311AE	6
	12	BSF-312AE	6
	13	BSF-313AE	6
	14	BSF-314AE	6
	15	BSF-315AE	6
	16	BSF-316AE	6
	17	BSF-317AE	6
	18	BSF-318AE	6
	19	BSF-319AE	6
	20	BSF-320AE	6
	twenty one	BSF-321AE	6
	twenty two	BSF-322AE	6
	twenty three	BSF-323AE	6
	twenty four	BSF-324AE	6
	twenty five	BSF-325AE	6
	26	BSF-326AE	6
	27	BSF-327AE	6
	28	BSF-328AE	6
	29	BSF-329AE	6
	30	BSF-330AE	6
