Manufacturer: Hirosugi Instruments Co., Ltd.

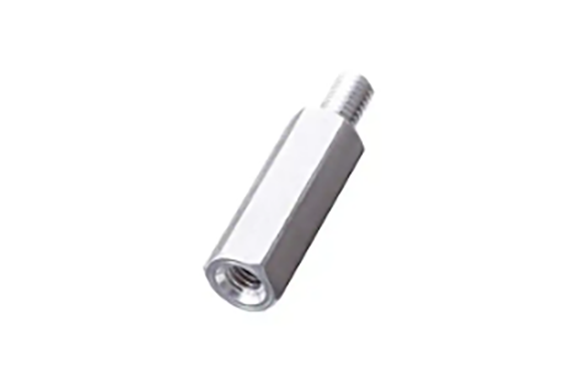

Model: BSL-500E

Specification

Material

Lead-free free-cutting aluminum (CB156)
Lead content 10 ppm or less

process

Pickling

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BSL-508E	5
	10	BSL-510E	7
	12	BSL-512E	9
	15	BSL-515E	10
	18	BSL-518E	10
	20	BSL-520E	10
	twenty five	BSL-525E	10
	30	BSL-530E	10
	35	BSL-535E	10
	40	BSL-540E	10
	45	BSL-545E	10
	50	BSL-550E	10
	55	BSL-555E	10
	60	BSL-560E	10
	65	BSL-565E	10
	70	BSL-570E	10
	75	BSL-575E	10
	80	BSL-580E	10
	85	BSL-585E	10
	90	BSL-590E	10
	95	BSL-595E	10
	100	BSL-5100E	10
	110	BSL-5110E	10
	120	BSL-5120E	10
	125	BSL-5125E	10
	130	BSL-5130E	10
	140	BSL-5140E	10
	150	BSL-5150E	10
	50	BSL-450E	8
	55	BSL-455E	8
	60	BSL-460E	8
	65	BSL-465E	8
	70	BSL-470E	8
	75	BSL-475E	8
	80	BSL-480E	8
	85	BSL-485E	8
	90	BSL-490E	8
	95	BSL-495E	8
	100	BSL-4100E	8
	110	BSL-4110E	8
	120	BSL-4120E	8
	130	BSL-4130E	8
	140	BSL-4140E	8
	150	BSL-4150E	8
