Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSU-500H

Specification

Material

Stainless steel (SUS304)

process

Degreasing

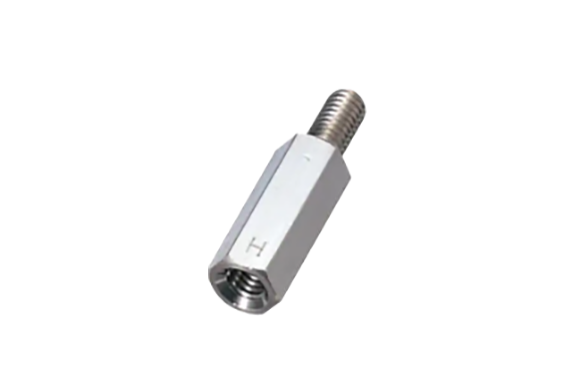

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance:
L=up to 60 ±0.1,
L=65 to 100 ±0.2,
L=110 and above ±0.3

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BSU-508H	5
	10	BSU-510H	7
	12	BSU-512H	9
	15	BSU-515H	10
	18	BSU-518H	10
	20	BSU-520H	10
	twenty five	BSU-525H	10
	30	BSU-530H	10
	35	BSU-535H	10
	40	BSU-540H	10
	45	BSU-545H	10
	50	BSU-550H	10
	55	BSU-555H	10
	60	BSU-560H	10
	65	BSU-565H	10
	70	BSU-570H	10
	75	BSU-575H	10
	80	BSU-580H	10
	85	BSU-585H	10
	90	BSU-590H	10
	95	BSU-595H	10
	100	BSU-5100H	10
	110	BSU-5110H	10
	120	BSU-5120H	10
	125	BSU-5125H	10
	130	BSU-5130H	10
	140	BSU-5140H	10
	150	BSU-5150H	10
