Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-500PH

Specification

Material

Stainless steel (SUS304)

process

Degreasing

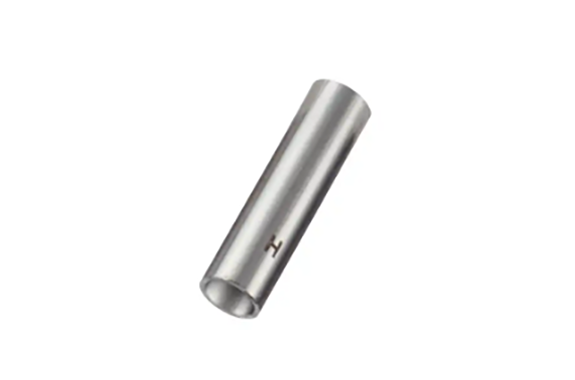

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=30
, ±0.2 from L=31 to L=40
, ±0.3 from L=41 to L =50,
±0.4 from L=52

*However, for CU-552PH to 5180PH, the minimum order is 10 pieces.

Screw diameter	L	Part Number
M5	2	CU-502PH
	3	CU-503PH
	4	CU-504PH
	5	CU-505PH
	6	CU-506PH
	7	CU-507PH
	8	CU-508PH
	9	CU-509PH
	10	CU-510PH
	11	CU-511PH
	12	CU-512PH
	13	CU-513PH
	14	CU-514PH
	15	CU-515PH
	16	CU-516PH
	17	CU-517PH
	18	CU-518PH
	19	CU-519PH
	20	CU-520PH
	twenty one	CU-521PH
	twenty two	CU-522PH
	twenty three	CU-523PH
	twenty four	CU-524PH
	twenty five	CU-525PH
	26	CU-526PH
	27	CU-527PH
	28	CU-528PH
	29	CU-529PH
	30	CU-530PH
	31	CU-531PH
	32	CU-532PH
	33	CU-533PH
	34	CU-534PH
	35	CU-535PH
	36	CU-536PH
	37	CU-537PH
	38	CU-538PH
	39	CU-539PH
	40	CU-540PH
	41	CU-541PH
	42	CU-542PH
	43	CU-543PH
	44	CU-544PH
	45	CU-545PH
	46	CU-546PH
	47	CU-547PH
	48	CU-548PH
	49	CU-549PH
	50	CU-550PH
	52	CU-552PH
	55	CU-555PH
	58	CU-558PH
	60	CU-560PH
	62	CU-562PH
	65	CU-565PH
	68	CU-568PH
	70	CU-570PH
	72	CU-572PH
	75	CU-575PH
	78	CU-578PH
	80	CU-580PH
	82	CU-582PH
	85	CU-585PH
	88	CU-588PH
90	CU-590PH
92	CU-592PH
95	CU-595PH
98	CU-598PH
100	CU-5100PH
105	CU-5105PH
110	CU-5110PH
115	CU-5115PH
120	CU-5120PH
125	CU-5125PH
130	CU-5130PH
135	CU-5135PH
140	CU-5140PH
145	CU-5145PH
150	CU-5150PH
155	CU-5155PH
160	CU-5160PH
165	CU-5165PH
170	CU-5170PH
175	CU-5175PH
180	CU-5180PH
