Manufacturer: Hirosugi Instruments Co., Ltd.
Model: BSU-500U

Specification

Material

Stainless steel (SUS316)

process

Degreasing

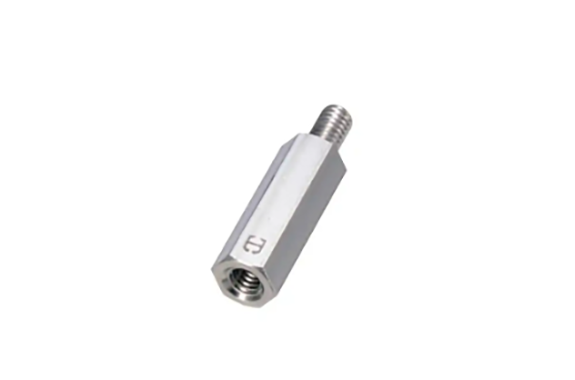

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BSU-508U	5
	10	BSU-510U	7
	12	BSU-512U	9
	15	BSU-515U	10
	18	BSU-518U	10
	20	BSU-520U	10
	twenty five	BSU-525U	10
	30	BSU-530U	10
	35	BSU-535U	10
	40	BSU-540U	10
	45	BSU-545U	10
	50	BSU-550U	10
	55	BSU-555U	10
	60	BSU-560U	10
	65	BSU-565U	10
	70	BSU-570U	10
	75	BSU-575U	10
	80	BSU-580U	10
	85	BSU-585U	10
	90	BSU-590U	10
	95	BSU-595U	10
	100	BSU-5100U	10
	110	BSU-5110U	10
	120	BSU-5120U	10
	125	BSU-5125U	10
	130	BSU-5130U	10
	140	BSU-5140U	10
	150	BSU-5150U	10
