Manufacturer: Hirosugi Instruments Co., Ltd.

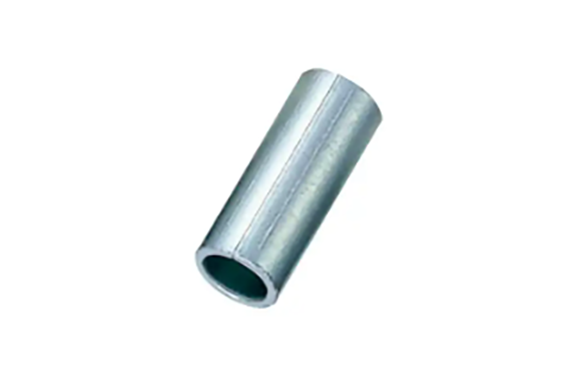

Model: CF-500ZE

Specification

Material

Steel plate (SPCC)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.05 up to L=10
, ±0.1 from L=10.5 to 20,
±0.2 from L=22

Screw diameter	L	Part Number
For M5	2.5	CF-502.5ZE
	3	CF-503ZE
	3.5	CF-503.5ZE
	4	CF-504ZE
	4.5	CF-504.5ZE
	5	CF-505ZE
	5.5	CF-505.5ZE
	6	CF-506ZE
	6.5	CF-506.5ZE
	7	CF-507ZE
	7.5	CF-507.5ZE
	8	CF-508ZE
	8.5	CF-508.5ZE
	9	CF-509ZE
	9.5	CF-509.5ZE
	10	CF-510ZE
	10.5	CF-510.5ZE
	11	CF-511ZE
	11.5	CF-511.5ZE
	12	CF-512ZE
	12.5	CF-512.5ZE
	13	CF-513ZE
	14	CF-514ZE
	15	CF-515ZE
	16	CF-516ZE
	17	CF-517ZE
	18	CF-518ZE
	19	CF-519ZE
	20	CF-520ZE
	twenty two	CF-522ZE
	twenty five	CF-525ZE
	28	CF-528ZE
	30	CF-530ZE
	32	CF-532ZE
	35	CF-535ZE
