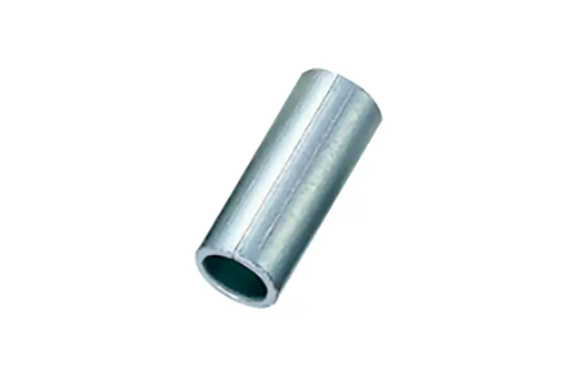

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CF-800ZE

Specification

Material

Steel plate (SPCC)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.05 up to L=10,
±0.1 from L=10.5 to 20,
±0.2 from L=22

Screw diameter	L	Part Number
For M8	4	CF-804ZE
	4.5	CF-804.5ZE
	5	CF-805ZE
	5.5	CF-805.5ZE
	6	CF-806ZE
	6.5	CF-806.5ZE
	7	CF-807ZE
	7.5	CF-807.5ZE
	8	CF-808ZE
	8.5	CF-808.5ZE
	9	CF-809ZE
	9.5	CF-809.5ZE
	10	CF-810ZE
	10.5	CF-810.5ZE
	11	CF-811ZE
	11.5	CF-811.5ZE
	12	CF-812ZE
	12.5	CF-812.5ZE
	13	CF-813ZE
	14	CF-814ZE
	15	CF-815ZE
	16	CF-816ZE
	17	CF-817ZE
	18	CF-818ZE
	19	CF-819ZE
	20	CF-820ZE
	twenty two	CF-822ZE
	twenty five	CF-825ZE
	28	CF-828ZE
	30	CF-830ZE
	32	CF-832ZE
	35	CF-835ZE
	40	CF-840ZE
	45	CF-845ZE
	50	CF-850ZE
