Manufacturer: Hirosugi Instruments Co., Ltd.

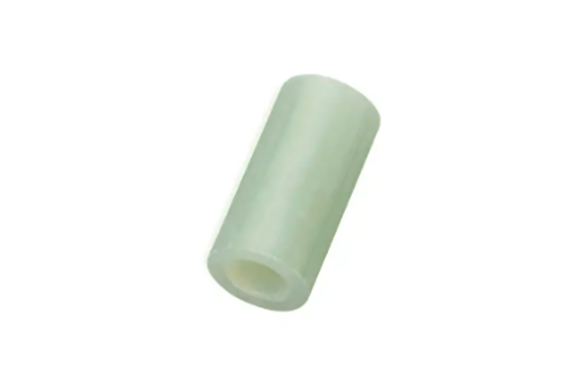

Model: CG-400

Specification

Material

Glass epoxy

color

Transparent yellow-green

Exterior drawings

Tolerance of L
: ±0.1 up to L=15
, ±0.15 from L=16

Screw diameter	L	Part Number
For M4	1	CG-401
	1.5	CG-401.5
	2	CG-402
	2.5	CG-402.5
	3	CG-403
	3.5	CG-403.5
	4	CG-404
	4.5	CG-404.5
	5	CG-405
	5.5	CG-405.5
	6	CG-406
	6.5	CG-406.5
	7	CG-407
	7.5	CG-407.5
	8	CG-408
	8.5	CG-408.5
	9	CG-409
	9.5	CG-409.5
	10	CG-410
	11	CG-411
	12	CG-412
	13	CG-413
	14	CG-414
	15	CG-415
	16	CG-416
	17	CG-417
	18	CG-418
	19	CG-419
	20	CG-420
	twenty one	CG-421
	twenty two	CG-422
	twenty three	CG-423
	twenty four	CG-424
	twenty five	CG-425
	26	CG-426
	27	CG-427
	28	CG-428
	29	CG-429
	30	CG-430
	35	CG-435
	40	CG-440
	45	CG-445
	50	CG-450
