Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-500U

Specification

Material

Stainless steel (SUS316)

Process

Degreasing

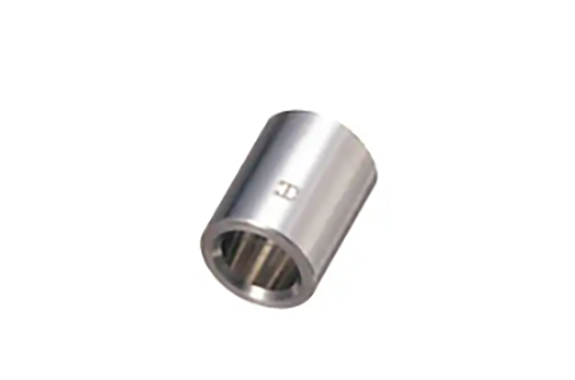

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved
on the spacer body.

Exterior drawings

Screw diameter	L	Part Number
M5	2	CU-502U
	3	CU-503U
	4	CU-504U
	5	CU-505U
	6	CU-506U
	7	CU-507U
	8	CU-508U
	9	CU-509U
	10	CU-510U
	12	CU-512U
	15	CU-515U
	18	CU-518U
	20	CU-520U
