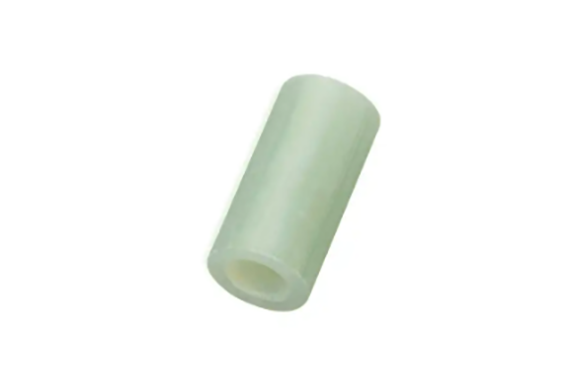

Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CG-500

Specification

Material

Glass epoxy

color

Transparent yellow-green

Exterior drawings

Tolerance of L
: ±0.1 up to L=15

Screw diameter	L	Part Number
For M5	1	CG-501
	1.5	CG-501.5
	2	CG-502
	2.5	CG-502.5
	3	CG-503
	3.5	CG-503.5
	4	CG-504
	4.5	CG-504.5
	5	CG-505
	5.5	CG-505.5
	6	CG-506
	6.5	CG-506.5
	7	CG-507
	7.5	CG-507.5
	8	CG-508
	8.5	CG-508.5
	9	CG-509
	9.5	CG-509.5
	10	CG-510
	12	CG-512
	15	CG-515
	18	CG-518
	20	CG-520
