Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-400PH

Specification

Material

Stainless steel (SUS304)

process

Degreasing

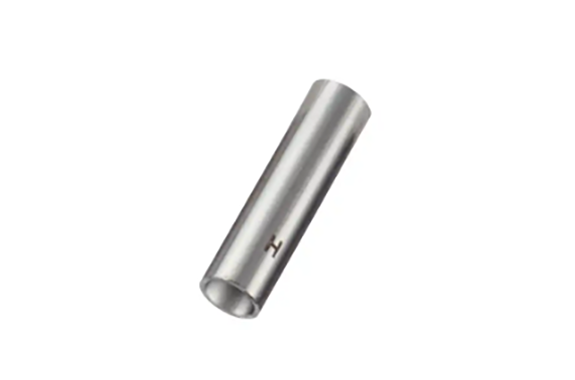

*The stainless steel 304 spacer is made of high-grade stainless steel. The H symbol is engraved on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=30
, ±0.2 up to L=35-40,
±0.3 up to L=45-50,
±0.4 from L=52

*However, for CU-452PH to CU-4180PH, the minimum order is 10 units.

Screw diameter	L	Part Number
M4	2	CU-402PH
	3	CU-403PH
	4	CU-404PH
	5	CU-405PH
	6	CU-406PH
	7	CU-407PH
	8	CU-408PH
	9	CU-409PH
	10	CU-410PH
	11	CU-411PH
	12	CU-412PH
	13	CU-413PH
	14	CU-414PH
	15	CU-415PH
	16	CU-416PH
	17	CU-417PH
	18	CU-418PH
	19	CU-419PH
	20	CU-420PH
	twenty five	CU-425PH
	30	CU-430PH
	35	CU-435PH
	40	CU-440PH
	45	CU-445PH
	50	CU-450PH
	52	CU-452PH
	55	CU-455PH
	58	CU-458PH
	60	CU-460PH
	62	CU-462PH
	65	CU-465PH
	68	CU-468PH
	70	CU-470PH
	72	CU-472PH
	75	CU-475PH
	78	CU-478PH
	80	CU-480PH
	82	CU-482PH
	85	CU-485PH
	88	CU-488PH
	90	CU-490PH
	92	CU-492PH
	95	CU-495PH
	98	CU-498PH
	100	CU-4100PH
	105	CU-4105PH
	110	CU-4110PH
	115	CU-4115PH
	120	CU-4120PH
	125	CU-4125PH
	130	CU-4130PH
	135	CU-4135PH
	140	CU-4140PH
	145	CU-4145PH
	150	CU-4150PH
	155	CU-4155PH
	160	CU-4160PH
	165	CU-4165PH
	170	CU-4170PH
	175	CU-4175PH
	180	CU-4180PH
