Manufacturer: Hirosugi Instruments Co., Ltd.

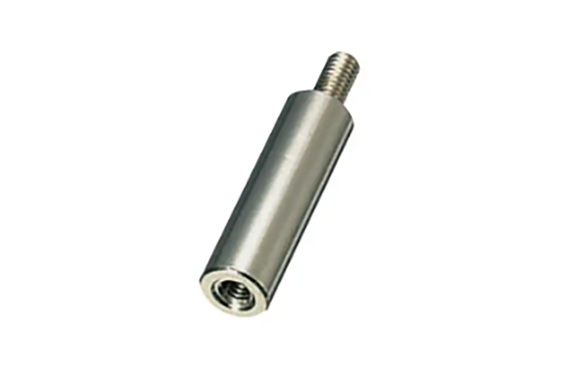

Model: BRL-500KE

Specification

Material

M1.7 to M2: Lead-free, free-cutting aluminum (CB156)
with a lead content of 10 ppm or less.
M2.6 to M5: Lead-free, free-cutting aluminum (KS26)
with a lead content of 300 ppm or less.

process

Electroless Nickel Plating

Exterior drawings

L tolerance:
±0.1 up to L=60,
±0.2 from L=65 to 100
, ±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	BRL-508KE	5
	10	BRL-510KE	7
	12	BRL-512KE	9
	15	BRL-515KE	10
	18	BRL-518KE	10
	20	BRL-520KE	10
	twenty five	BRL-525KE	10
	30	BRL-530KE	10
	35	BRL-535KE	10
	40	BRL-540KE	10
	45	BRL-545KE	10
	50	BRL-550KE	10
	55	BRL-555KE	10
	60	BRL-560KE	10
	65	BRL-565KE	10
	70	BRL-570KE	10
	75	BRL-575KE	10
	80	BRL-580KE	10
	85	BRL-585KE	10
	90	BRL-590KE	10
	95	BRL-595KE	10
	100	BRL-5100KE	10
	110	BRL-5110KE	10
	120	BRL-5120KE	10
	125	BRL-5125KE	10
	130	BRL-5130KE	10
	140	BRL-5140KE	10
	150	BRL-5150KE	10
	27	BRL-427KE	8
	28	BRL-428KE	8
	29	BRL-429KE	8
	30	BRL-430KE	8
	35	BRL-435KE	8
	40	BRL-440KE	8
	45	BRL-445KE	8
	50	BRL-450KE	8
	55	BRL-455KE	8
	60	BRL-460KE	8
