Manufacturer: Hirosugi Instruments Co., Ltd.
Model: CU-500PU

Specification

Material

Stainless steel (SUS316)

process

Degreasing

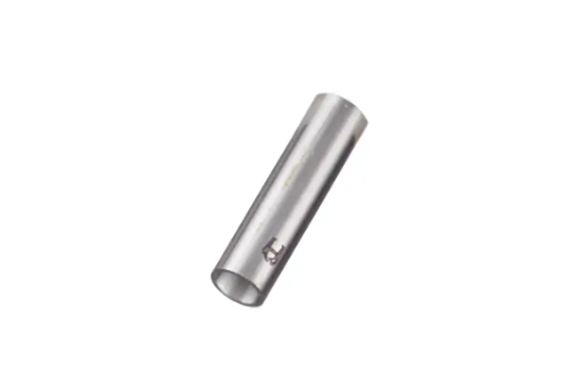

*The stainless steel 316 spacer is made of high-grade stainless steel with excellent acid and chemical resistance. The symbol is engraved
on the spacer body.

Exterior drawings

L tolerance:
±0.1 up to L=30
, ±0.2 from L=35 to L=40,
±0.3 from L=45

Screw diameter	L	Part Number
M5	2	CU-502PU
	3	CU-503PU
	4	CU-504PU
	5	CU-505PU
	6	CU-506PU
	7	CU-507PU
	8	CU-508PU
	9	CU-509PU
	10	CU-510PU
	11	CU-511PU
	12	CU-512PU
	13	CU-513PU
	14	CU-514PU
	15	CU-515PU
	16	CU-516PU
	17	CU-517PU
	18	CU-518PU
	19	CU-519PU
	20	CU-520PU
	twenty two	CU-522PU
	twenty five	CU-525PU
	28	CU-528PU
	30	CU-530PU
	35	CU-535PU
	40	CU-540PU
	45	CU-545PU
	50	CU-550PU
