Manufacturer: Hirosugi Instruments Co., Ltd.

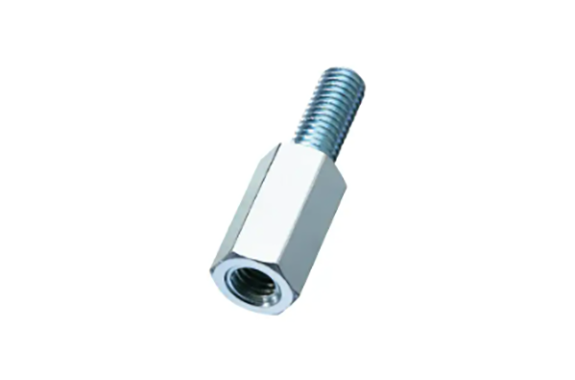

Model: LSF-500-13E

Specification

Material

Free-cutting steel (SUM)

process

Trivalent chromium chromate treatment

Exterior drawings

L tolerance:
±0.1 up to L=60
, ±0.2 from L=65 to 100,
±0.3 from L=110

Thread diameter (pitch)	L	Part Number	ℓ1
M5 (0.8)	8	LSF-508-13E	5
	10	LSF-510-13E	7
	12	LSF-512-13E	9
	15	LSF-515-13E	10
	18	LSF-518-13E	10
	20	LSF-520-13E	10
	twenty five	LSF-525-13E	10
	30	LSF-530-13E	10
	35	LSF-535-13E	10
	40	LSF-540-13E	10
	45	LSF-545-13E	10
	50	LSF-550-13E	10
	55	LSF-555-13E	10
	60	LSF-560-13E	10
	65	LSF-565-13E	10
	70	LSF-570-13E	10
	75	LSF-575-13E	10
	80	LSF-580-13E	10
	85	LSF-585-13E	10
	90	LSF-590-13E	10
	95	LSF-595-13E	10
	100	LSF-5100-13E	10
	110	LSF-5110-13E	10
	120	LSF-5120-13E	10
	125	LSF-5125-13E	10
	130	LSF-5130-13E	10
	140	LSF-5140-13E	10
	150	LSF-5150-13E	10
