Manufacturer: Hirosugi Instruments Co., Ltd.

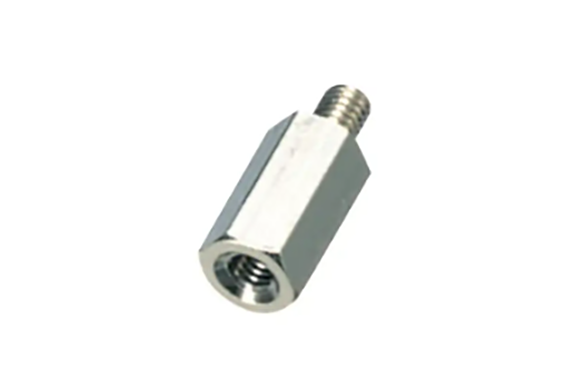

Model: MSU-2500-03

Specification

Material

Free-cutting stainless steel (SUS303)

process

Degreasing

Exterior drawings

Thread diameter (pitch)	L	Part Number	ℓ1
M2.5 (0.45)	4	MSU-2504-03	2.5
	5	MSU-2505-03	3
	6	MSU-2506-03	4
	7	MSU-2507-03	5
	8	MSU-2508-03	5
	9	MSU-2509-03	5
	10	MSU-2510-03	5
	11	MSU-2511-03	5
	12	MSU-2512-03	5
	13	MSU-2513-03	5
	14	MSU-2514-03	5
	15	MSU-2515-03	5
	16	MSU-2516-03	5
	17	MSU-2517-03	5
	18	MSU-2518-03	5
	19	MSU-2519-03	5
	20	MSU-2520-03	5
	twenty one	MSU-2521-03	5
	twenty two	MSU-2522-03	5
	twenty three	MSU-2523-03	5
	twenty four	MSU-2524-03	5
	twenty five	MSU-2525-03	5
	26	MSU-2526-03	5
	27	MSU-2527-03	5
	28	MSU-2528-03	5
	29	MSU-2529-03	5
	30	MSU-2530-03	5
