Horiuchi Machinery Co., Ltd., Japan
Horiuchi F Connector
Made in Japan
Manufacturer: Horiuchi

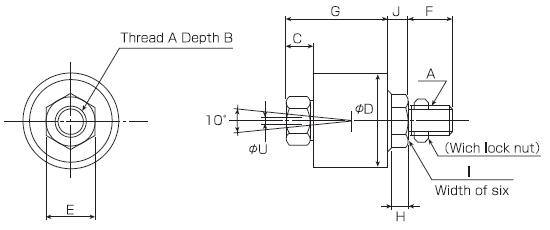

Specifications
| Bore | Symbol | Parts Code | A | B | C | D | E | F | G | H | I | J | U | Usage loads (N) Pull | Usage loads (N) Push | Mass (kg) |
| φ32 | φ40 | F-16 | M16P1.5 | 13 | 17 ±1.0 | 45 | 23 | 24 | 52 ±1.0 | 6 | 23 | 6 | 2 | to 5290 | to 19600 | 0.40 |
| φ40 | φ50 | F-20 | M20P1.5 | 20 | 24.5 ±1.0 | 61 | 32 | 32 | 68 ±1.0 | 6 | 29 | 11.5 | 5 | to 7640 | to 39200 | 1.10 |
| φ50 | φ63 | F-24 | M24P1.5 | 22 | 34.5 ±1.0 | 61 | 35 | 32 | 78 ±1.0 | 12 | 29 | 11.5 | 3 | to 7640 | to 39200 | 1.10 |
| φ63 | φ80 | F-30 | M30P1.5 | 22 | 36.5 ±1.0 | 69 | 41 | 42 | 88.5 ±1.0 | 8 | 35 | 15 | 3 | to 13520 | to 78400 | 1.80 |
The Screw Length
| Bore | Symbol | Parts Code | A | B | c | h | t | Size CF (The screw length, mm) |
| Φ32 | Φ40 | F-16 | M16P1.5 | 13 | 12.5 | 10 | 2.5 | 25 |
| Φ40 | Φ50 | F-20 | M20P1.5 | 20 | 19.5 | 12 | 3.5 | 35 |
| Φ50 | Φ63 | F-24 | M24P1.5 | 22 | 21.5 | 14 | 4.5 | 40 |
| Φ63 | Φ80 | F-30 | M30P1.5 | 22 | 21.5 | 18 | 5.5 | 45 |
