Japan, JPF, Screw

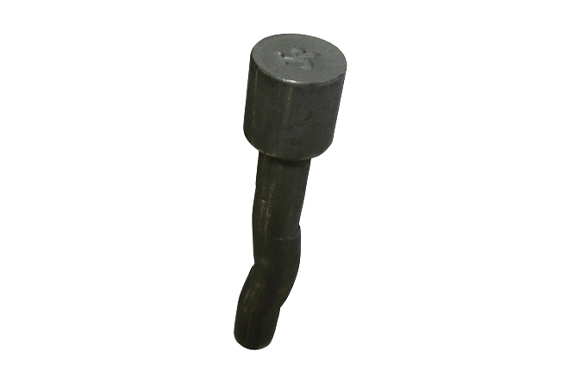

JPF Weld Cobra Welding Anchor For Concrete
Product Made in Japan
Manufacturer: JPF
Model: Weld Cobra
Feature
● 50% superb view from conventional anchor. It is easier to carry
● The lower large diameter only 6.4 mm. Construction speed up
● Depth of embedding is constant. Welding does not sink into the hole even in a deep hole (see figure)
● Temporarily upwards can be inserted. Anchors can be plugged in and put together in batches.
Specification
| Part Number | Diameter (mm) | Screw Length (mm) | Drill Diameter (mm) | Drill Depth (mm) | Anchor Burying Depth (mm) | Experimental Data | Concrete Strength |
|---|---|---|---|---|---|---|---|
| CB – W1045 | 10 | 6 | 45 | 10 | 6.4 | 45 | 4.0 (408) / 6.0 (612) |
| CB – W1055 | 10 | 6 | 55 | 20 | 6.4 | 35 | 4.0 (408) / 6.0 (612) |
