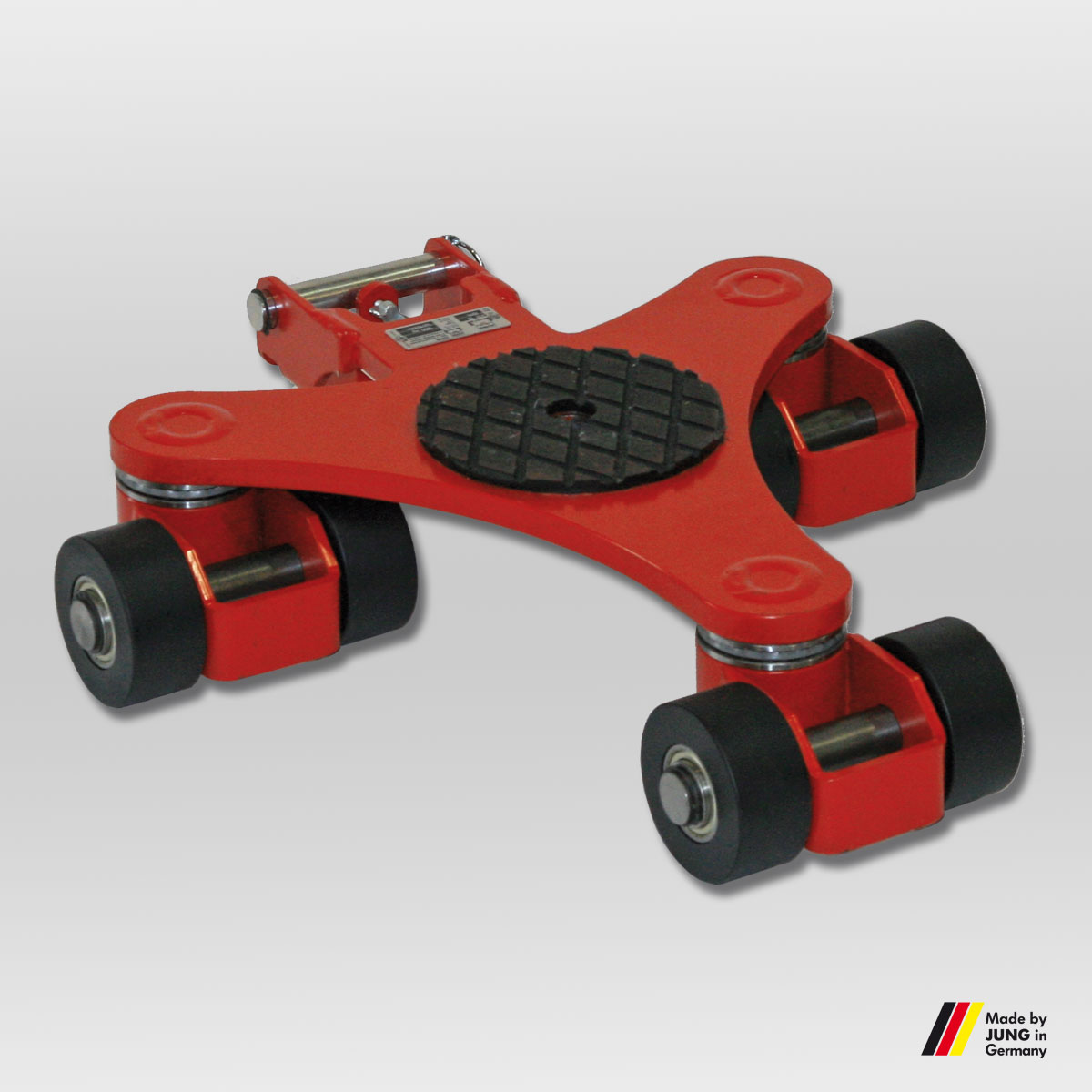

Jung JKB Series Revolving Transport Trolleys

Made in Germany
Manufacturer: Jung
Model: JKB Series: JKB 2K, JKB 2 SET, JKB 4K, JKB 4 SET, JKB 6K, JKB 6 SET

DESCRIPTION

JKB Series

Optional connecting bars can be fixed without tools by clamping down on adapter.

High load capacity at low weight. Bearing supported swiveling castors allow 360° maneuverability. Mix and match revolving trolleys with transport trolleys: JKB 2 to JKB 8 have same height as transport trolleys series K.

All products are also available in a set of two with price advantage.

In addition, all the trolleys have a platform center hole to allow attachement to the load.

Using the slots in the platform, the trolleys JKB 4 – 8 can be affixed to the load with standard lashing belts.

Pulling handle and connecting bars available as accessories (see pages 66-67).

Unrivalled: The narrow castors reduce rolling and turning resistance to a minimum.

For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.

The load capacity specifications refer to a maximum speed of 2 km/h.

SPECIFICATION

TYPE JKB 2 K JKB 2 SET
Consist of 1 x JKB 2 K 2 x JKB 2 K
Load capacity (kg) 2,000 2 x 2,000
Number of castors (Pieces) 6 2 x 6
Castor dimensions ØxI (mm) 85 x 43 85 x 43
Height (mm) 110 110
Supporting surface per cassette ØC (mm) 150 150
Cassette dimensions L1 x B1 (mm) 528 x 495 528 x 495
Weight JUWAmid (kg) 20 40
ORDER NO. with JUWAmid 14 020 085-P 14 020 085-D
ORDER NO. with JUWAthan® 14 020 085-VU 14 020 085-DVU
TYPE JKB 4 K JKB 4 SET JKB 6 K JKB 6 SET
Consist of 1 x JKB 4 K 2 x JKB 4 K 1 x JKB 6 K 2 x JKB 6 K
Load capacity (kg) 4,000 2 x 4,000 6,000 2 x 6,000
Number of castors (Pieces) 12 2 x 12 16 2 x 16
Castor dimensions ØxI (mm) 85 x 43 85 x 43 85 x 43 85 x 43
Height (mm) 110 110 110 110
Supporting surface per cassette ØC (mm) 250 250 250 250
Cassette dimensions L1 x B1 (mm) 690 x 475 690 x 475 675 x 525 675 x 525
Weight JUWAmid (kg) 38 76 41 82
ORDER NO. with JUWAmid 14 041 085-P 14 041 085-D 14 061 085-P 14 061 085-D
ORDER NO. with JUWAthan® 14 041 085-VU 14 041 085-DVU 14 061 085-VU 14 061 085-DVU



REQUEST QUOTATION
